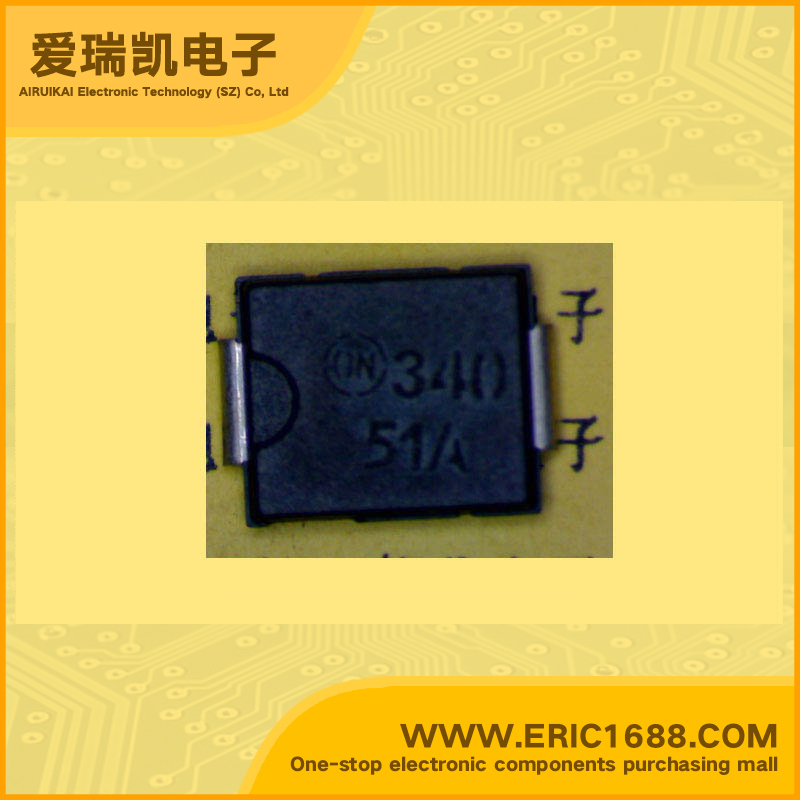

1.5SMC51AT3 瞬态抑制二极管TVS/ESD 43.6V 21.4V 4W DO-214AB/SMC-51V 标记51A
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 43.6V |
| 反向击穿电压VBRBreakdown Voltage | 51V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 1500W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 21.4V |
| 额定耗散功率PdPower dissipation | 4W |
| Description & Applications | 1500 Watt Peak Power Zener Transient Voltage Suppressors；Specification Features • Working Peak Reverse Voltage Range − 5.8 to 77.8 V • Standard Zener Breakdown Voltage Range − 6.8 to 91 V • Peak Power − 1500 W @ 1.0 ms • ESD Rating of Class 3 (>16 kV) per Human Body Model • Maximum Clamp Voltage @ Peak Pulse Current • Low Leakage < 5.0 uA Above 10 V • UL 497B for Isolated Loop Circuit Protection • Maximum Temperature Coefficient Specified • Response Time is Typically < 1.0 ns • Pb−Free Packages are Available |
| 描述与应用 | 1500瓦峰值功率 齐纳瞬态电压 抑制器;规格特性 •工作峰值反向电压范围−5.8到77.8 V •标准齐纳击穿电压范围−6.8到91 V •峰值功率1500 W @−1.0 ms •防静电等级3级(> 16千伏)/人体模型 •最大峰值脉冲钳位电压@峰值脉冲电流 •低泄漏< 5.0 uA高于10 V •UL 497 b为孤立的循环电路保护 •最高温度系数指定 •响应时间通常是< 1.0 ns •无铅包装 |
| 规格书PDF |
