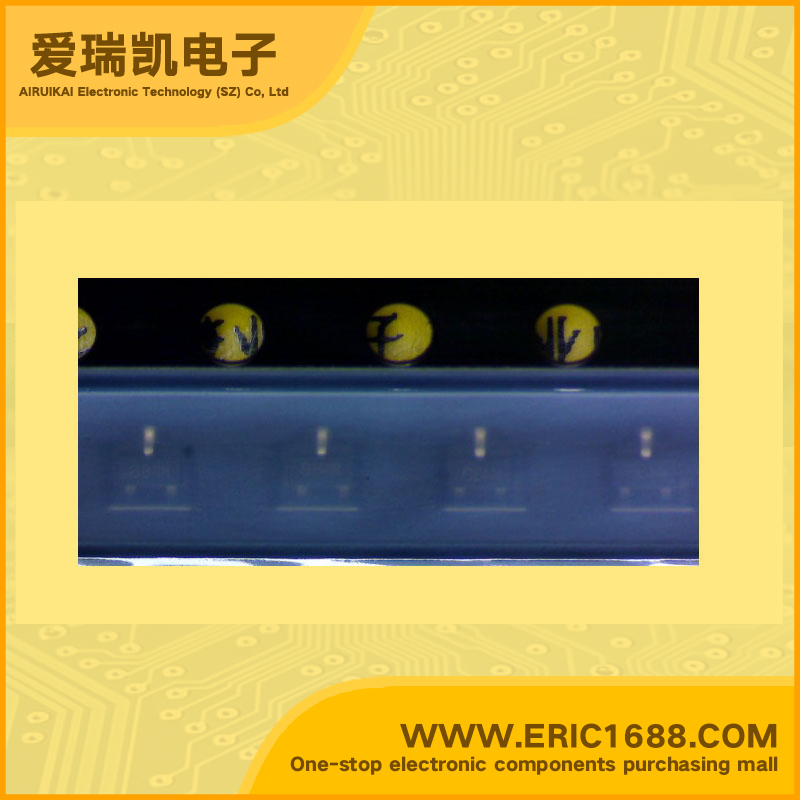

2DA1774R-7 PNP三极管 -60V -1.9A 140MHz 180~390 -500mV/-0.5V SOT-523 marking/标记 BB
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | -1.9A |
| 截止频率fTTranstion Frequency(fT) | 140MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 180~390 @ -6V,-0.001A |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 150mW/0.15W |
| Description & Applications | PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR • Ultra Miniature Surface Mount Package • Complementary NPN Type Available (2DC4617Q,R,S) • Lead Free/RoHS Compliant (Note 3) |
| 描述与应用 | PNP小信号表面贴装晶体管 •超微型表面贴装封装 •互补NPN类型（2DC4617Q，R，S） •符合无铅/ RoHS标准 |
| 规格书PDF |
