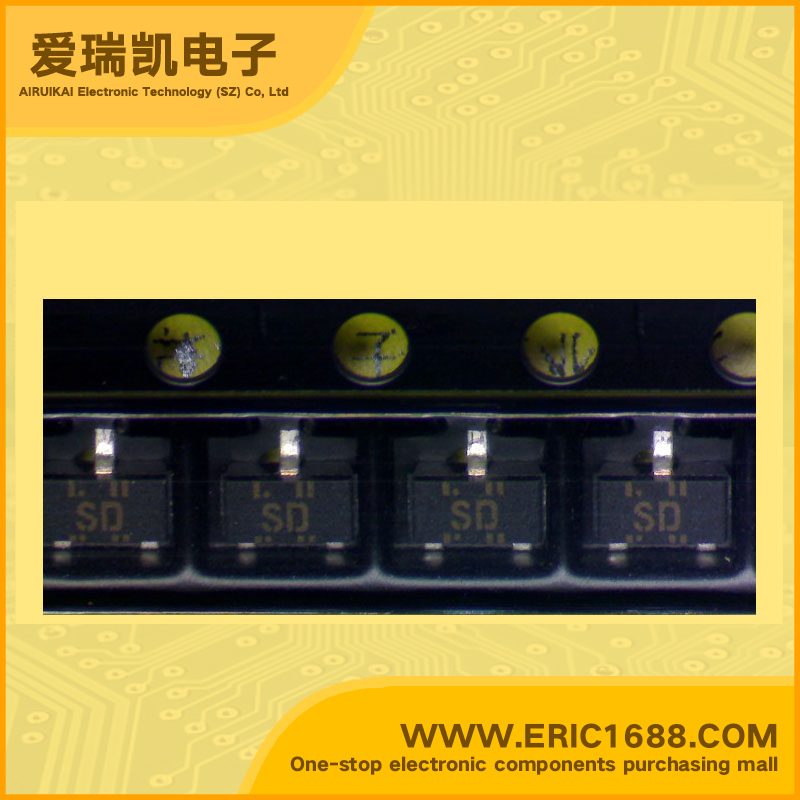

2SA1121 PNP三极管 -35V -500mA/-0.5A 160~320 -200mV/-0.2V SOT-23/MPAK marking/标记 SD 低频放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -35V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −35V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | |
| 直流电流增益hFEDC Current Gain(hFE) | 160~320 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −200mV/-0.2V |
| 耗散功率PcPoWer Dissipation | 150mW/0.15W |
| Description & Applications | Silicon PNP Epitaxial Application • Low frequency amplifier • Complementary pair with 2SC2618 |
| 描述与应用 | 硅PNP外延型的 应用 •低频放大器 •互补配对2SC2618 |
| 规格书PDF |
