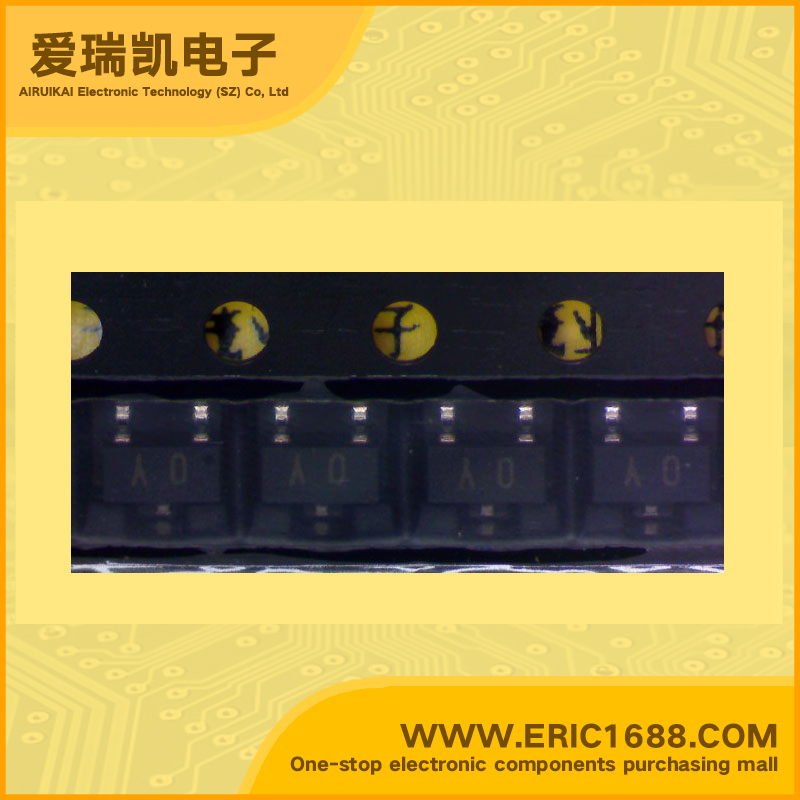

2SA1255 PNP三极管 -160V -1.5A 100MHz 70~240 -1.5V SOT-23/SC-59 marking/标记 OY 功率/驱动放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -160V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | -160V |
| 集电极连续输出电流ICCollector Current(IC) | -1.5A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 70~240 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -1.5V |
| 耗散功率PcPoWer Dissipation | 1W |
| Description & Applications | Power Amplifier Applications driver stage amplifier application； High transition frequency: fT = 100 MHz Complementary to 2SC2983 |
| 描述与应用 | 功率放大器应用 驱动级放大器的应用; 高转换频率：FT =100兆赫 互补2SC2983 |
| 规格书PDF |
