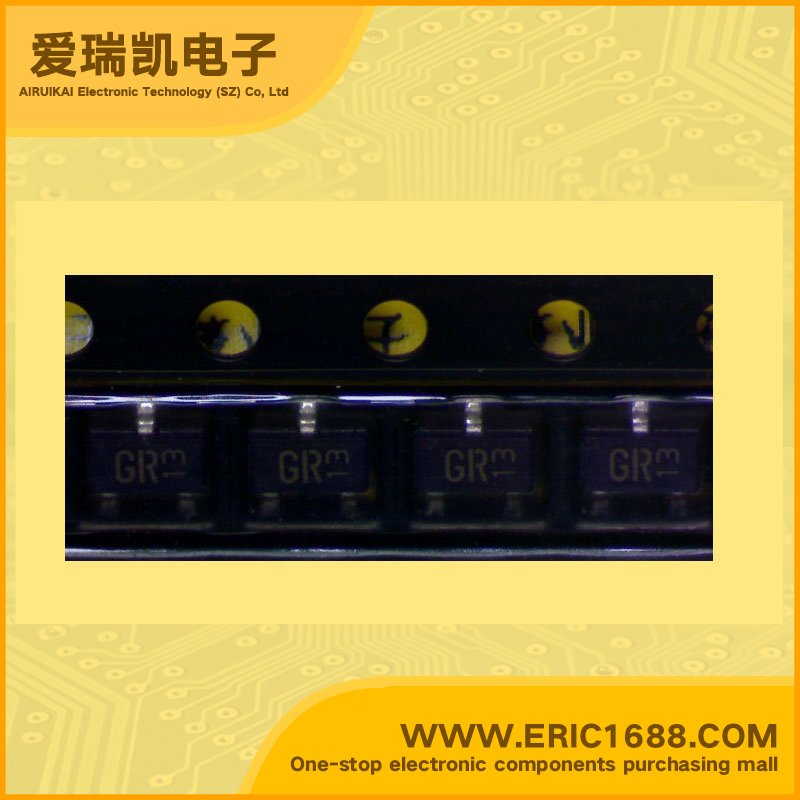

2SA1455K PNP三极管 -120V -50mA 140MHz 180~820 -500mV/-0.5V SOT-23/SMT3 marking/标记 GR 击穿电压高
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -120V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | -120V |
| 集电极连续输出电流ICCollector Current(IC) | -50mA |
| 截止频率fTTranstion Frequency(fT) | 140MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 180~820 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 200mW/0.2W |
| Description & Applications | high breakdown voltage ； low-noise design； complementary pair with 2SC3722K |
| 描述与应用 | 击穿电压高; 低噪音设计; 互补对2SC3722K |
| 规格书PDF |
