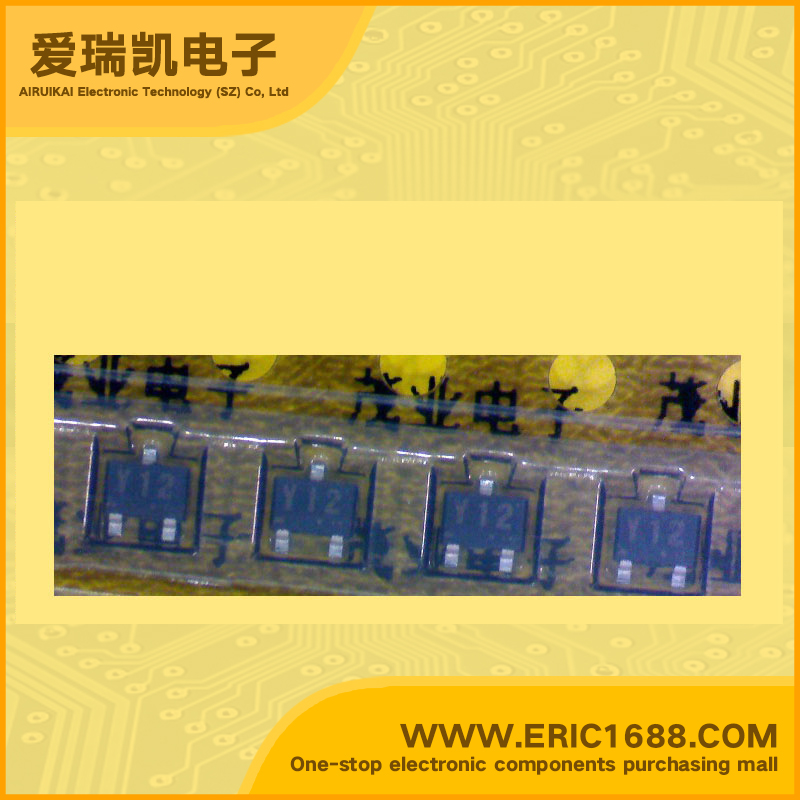

2SA1608 PNP三极管 -60V -500mA/-0.5A 400MHz 75~150 -450mV/-0.45V SOT-323/SC-70 marking/标记 Y12 高频放大器/开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −40V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 400MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 75~150 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −450mV/-0.45V |
| 耗散功率PcPoWer Dissipation | 150mW/0.15W |
| Description & Applications | High frequency amplifier and switching PNP silicon epitaxial transistor mini mold high fT； complementary to 2SC3739 |
| 描述与应用 | 高频放大器和开关 PNP硅外延晶体管 小型模具 高频率; 2SC3739互补 |
| 规格书PDF |
