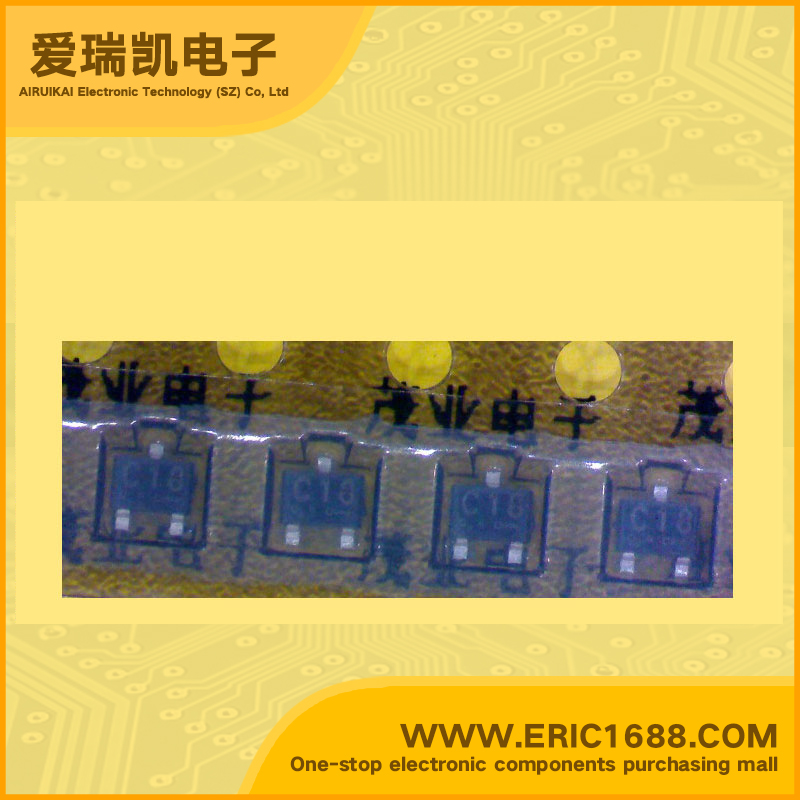

2SA1612 PNP三极管 -120V -50mA 90MHz 450~900 -90mV SOT-323/SC-70 marking/标记 C18 音频放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -120V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | -120V |
| 集电极连续输出电流ICCollector Current(IC) | -50mA |
| 截止频率fTTranstion Frequency(fT) | 90MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 450~900 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -90mV |
| 耗散功率PcPoWer Dissipation | 150mW/0.15W |
| Description & Applications | audio frequency high gain amplifier PNP silicon epitaxial transistor complementary to 2sc4180； high DC current gain； |
| 描述与应用 | 音频频率高增益放大器PNP硅外延晶体管 互补2sc4180; 高直流增益 |
| 规格书PDF |
