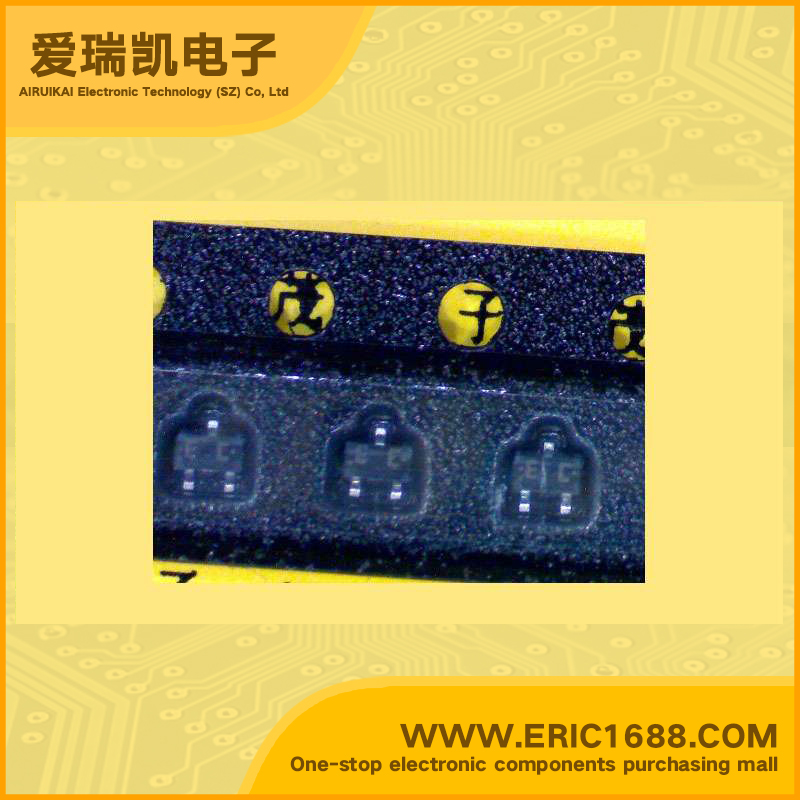

2SA1790-C PNP三极管 -30V -30mA 300MHz 110~220 -100mV/-0.1V SOT-523 marking/标记 EC
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −20V |
| 集电极连续输出电流ICCollector Current(IC) | -30mA |
| 截止频率fTTranstion Frequency(fT) | 300MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 110~220 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -100mV/-0.1V |
| 耗散功率PcPoWer Dissipation | 125mW/0.125W |
| Description & Applications | Silicon PNP epitaxial planer type Features High transition frequency fT. SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. |
| 描述与应用 | 硅PNP外延刨床类型 特点 高转换频率FT。 SS-迷你型包装，允许带包装盒包装的设备和通过自动插入 |
| 规格书PDF |
