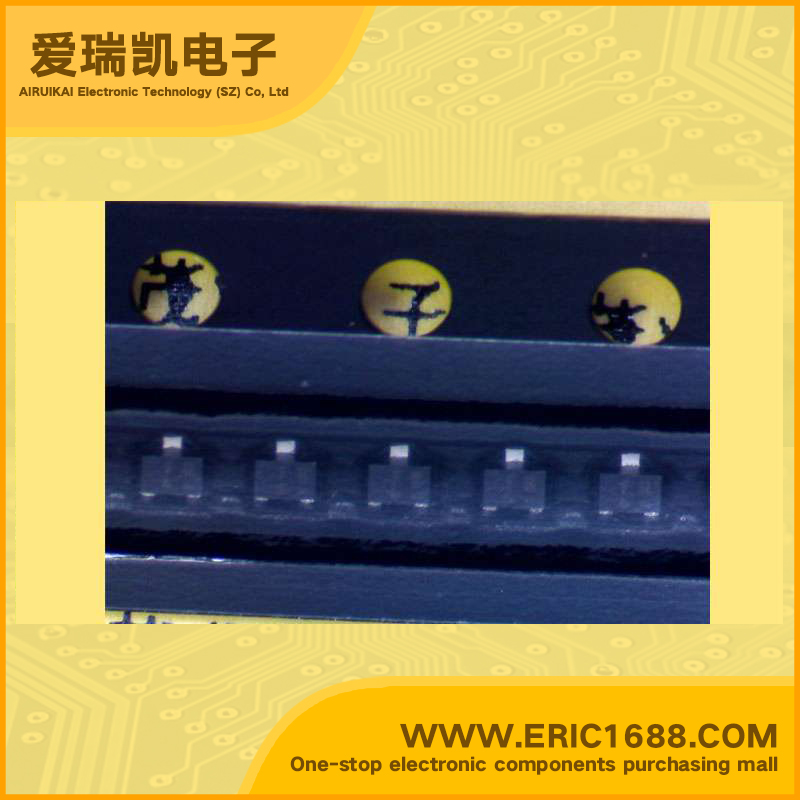

2SA2029 PNP三极管 -60V -150mA/-0.15A 140MHz 180~390 -500mV/-0.5V sot-723/VMT3 marking/标记 FR
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | −150mA/-0.15A |
| 截止频率fTTranstion Frequency(fT) | 140MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 180~390 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 150mW/0.15W |
| Description & Applications | PNP Silicon epitaxial planar type General purpose transistor Features Excellent hFE linearity Complements the 2SC5658 |
| 描述与应用 | PNP硅外延平面型 通用晶体管 特点 优秀HFE线性 补充2SC5658 |
| 规格书PDF |
