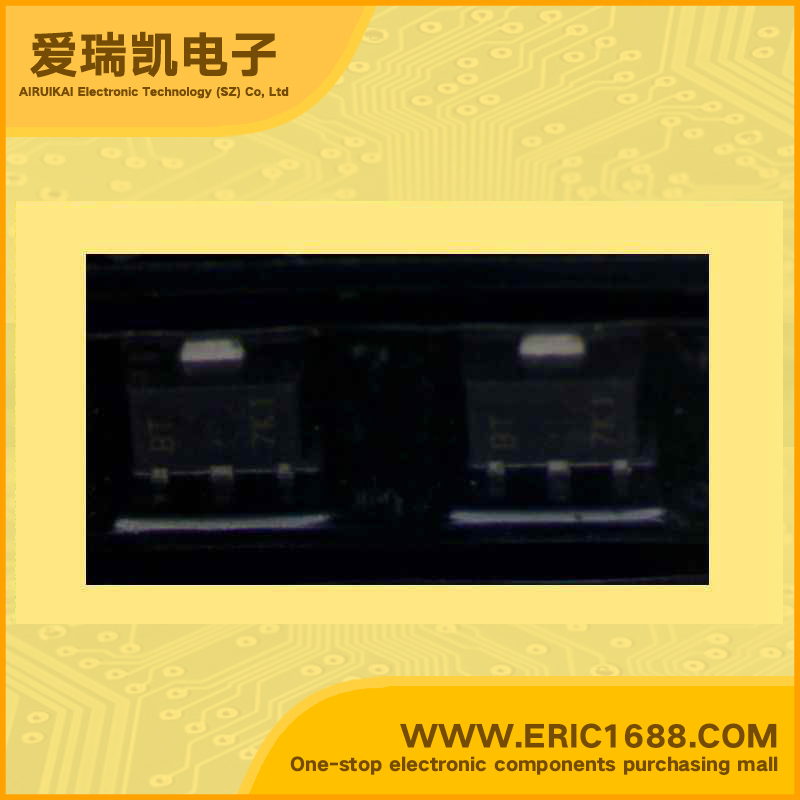

2SB1048 PNP三极管 -60V -1A 180MHz 2000~100000 -2V SOT-89/SC-62 marking/标记 BT 高增益放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −60V |
| 集电极连续输出电流ICCollector Current(IC) | -1A |
| 截止频率fTTranstion Frequency(fT) | 180MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 2000~100000 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -2V |
| 耗散功率PcPoWer Dissipation | 1W |
| Description & Applications | PNP Silicon epitaxial planar type Application • High gain amplifier |
| 描述与应用 | PNP硅外延平面型 应用 •高增益放大器 |
| 规格书PDF |
