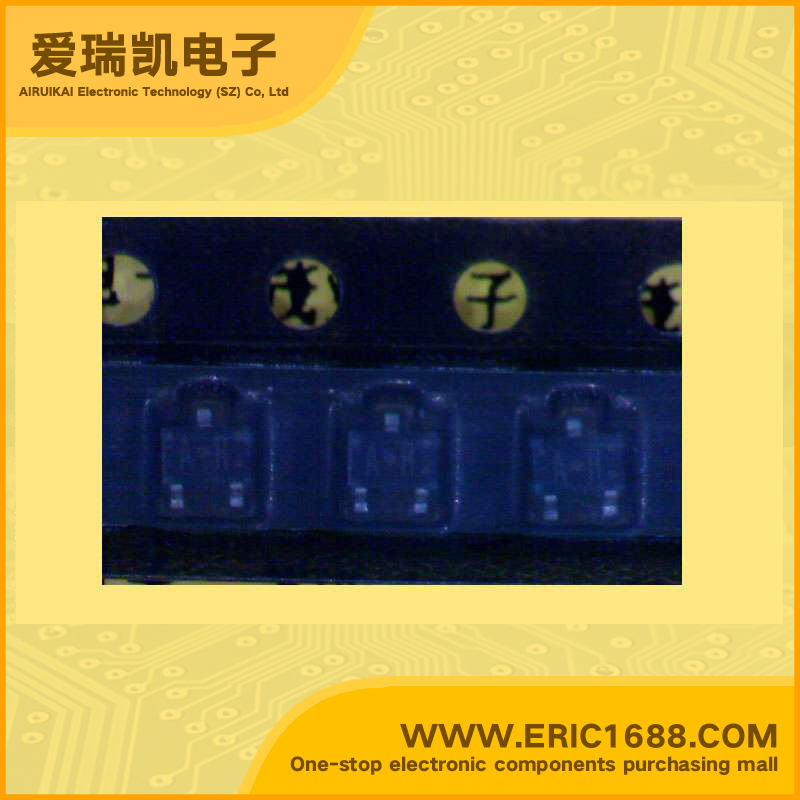

2SB1218-R PNP三极管 -45V -100mA/-0.1A 80MHz 210~340 -500mV/-0.5V SOT-323/SC-70 marking/标记 AR 放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -45V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −45V |
| 集电极连续输出电流ICCollector Current(IC) | −100mA/-0.1A |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 210~340 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 150mW/0.15W |
| Description & Applications | PNP Silicon epitaxial planar transistor For general amplification Complementary to 2SD1819A Features High foward current transfer ratio hFE. S-Mini type package |
| 描述与应用 | PNP硅外延平面晶体管 对于一般的放大 补充型2SD1819A 特点 高FOWARD电流传输比HFE。 S-迷你型封装 |
