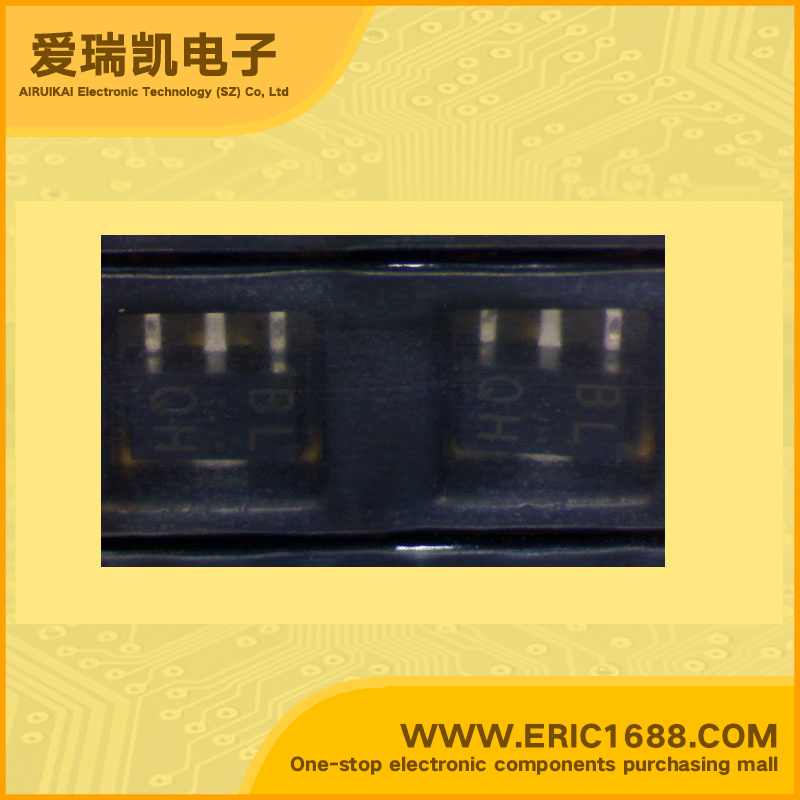

2SB1561-Q PNP三极管 -60V -2A 200MHz 120~270 -350mV/-0.35V SOT-89/MPT marking/标记 BLQ
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −60V |
| 集电极连续输出电流ICCollector Current(IC) | -2A |
| 截止频率fTTranstion Frequency(fT) | 200MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~270 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −550mV/-0.55V |
| 耗散功率PcPoWer Dissipation | 500mW/0.5W |
| Description & Applications | Medium Power Transistor Features Low saturation voltage Complements to2SD2391. |
| 描述与应用 | 中等功率晶体管 特点 低饱和电压 补充型to2SD2391。 |
| 规格书PDF |
