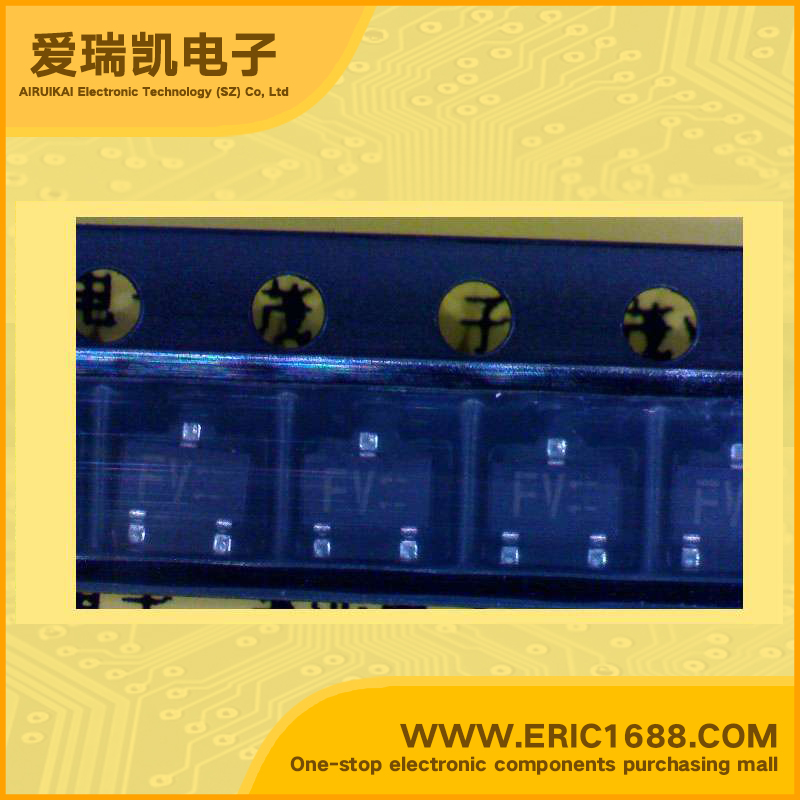

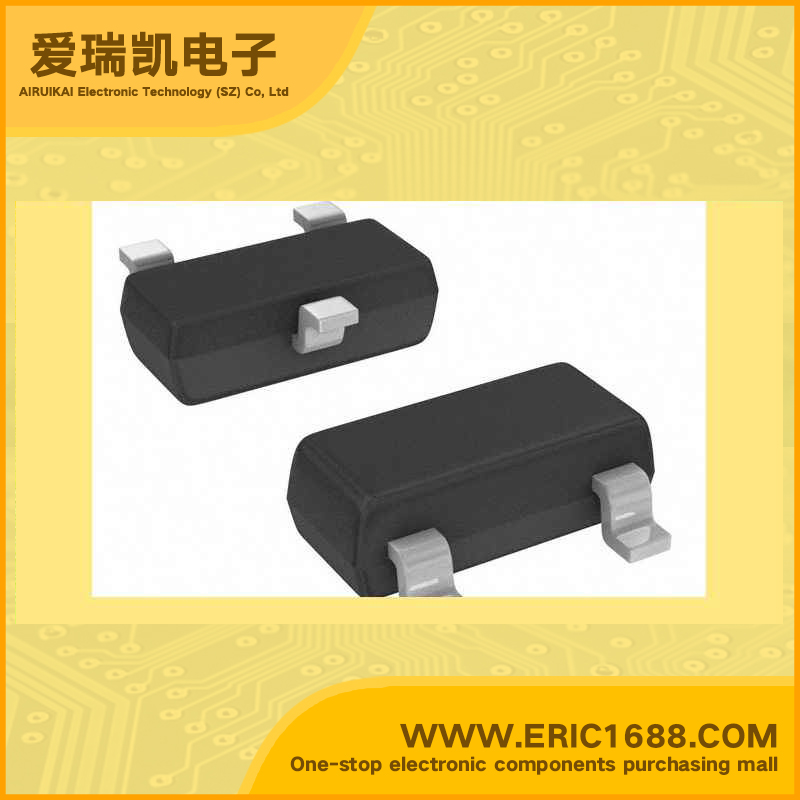

2SB1690K PNP三极管 -15V -2A 360MHz 270~680 -180mV/-0.18V SOT-23/SMT3 marking/标记 FV 低频放大器驱动器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -15V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | -12V |
| 集电极连续输出电流ICCollector Current(IC) | -2A |
| 截止频率fTTranstion Frequency(fT) | 360MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 270~680 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -180mV/-0.18V |
| 耗散功率PcPoWer Dissipation | 200mW/0.2W |
| Description & Applications | General purpose amplification Application Low frequency amplifier Driver Features 1) A collector current is large. 2) Collector saturation voltage is low. |
| 描述与应用 | 通用放大 应用 低频放大器驱动器 特点 1）集电极电流是很大的。 2）集电极饱和电压低。 |
| 规格书PDF |
