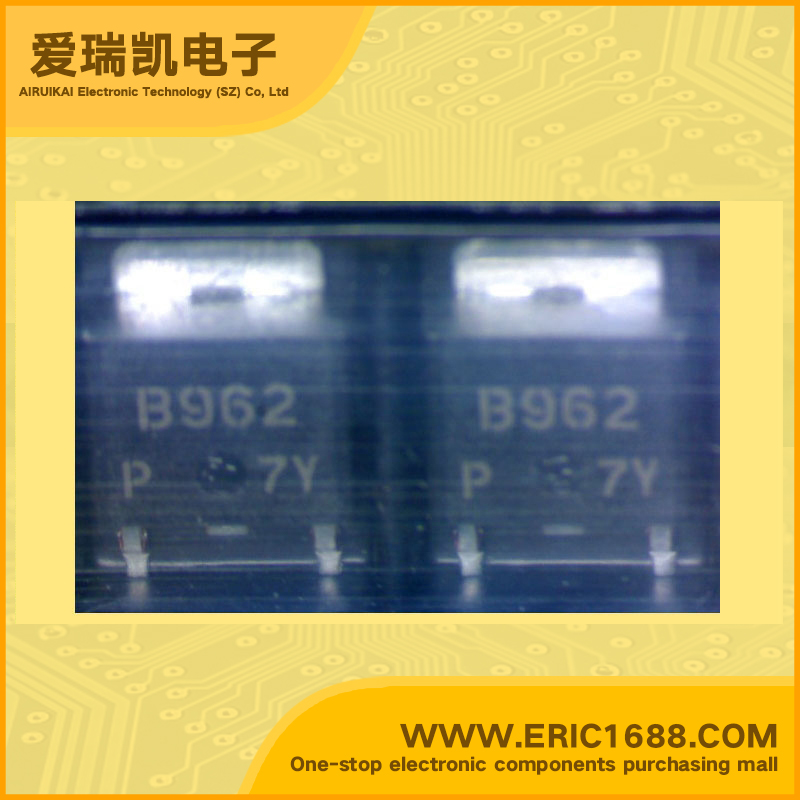

2SB962-Z-T2 PNP三极管 -40V -3A 80MHz 100~200 -300mV/-0.3V TO-252/DPAK marking/标记 B962
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -40V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −30V |
| 集电极连续输出电流ICCollector Current(IC) | -3A |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率PcPoWer Dissipation | 2W |
| Description & Applications | low Vce（sat）=-0.3v |
| 描述与应用 | 低 Vce（sat）=-0.3v |
| 规格书PDF |
