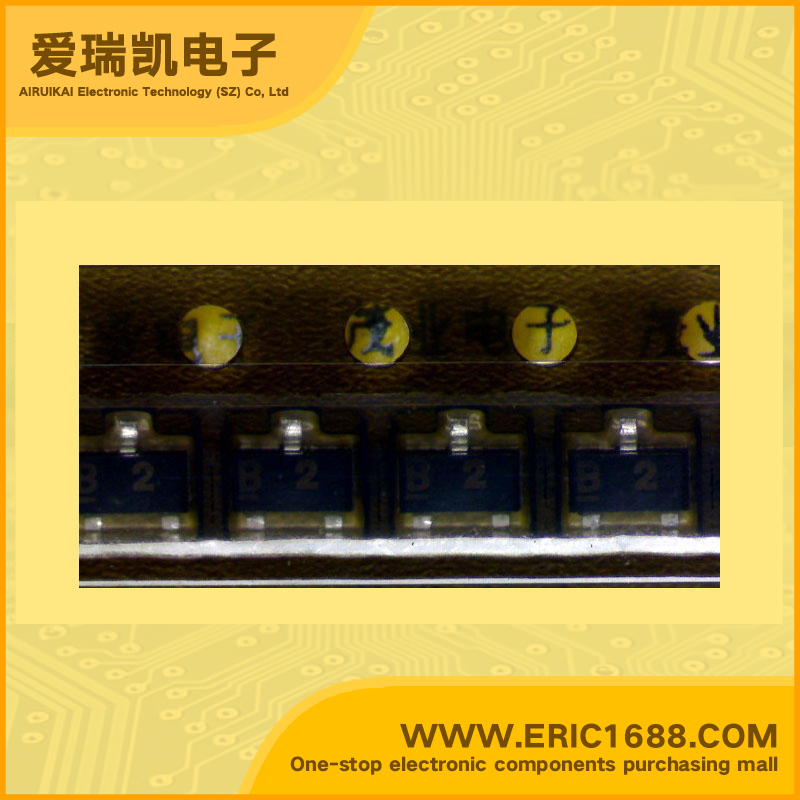

2SC1621 NPN三极管 40V 200mA/0.2A 500MHz 40~80 250mV/0.25V SOT-23/SC-59 marking/标记 B2 高速开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 40V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流ICCollector Current(IC) | 200mA/0.2A |
| 截止频率fTTranstion Frequency(fT) | 500MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 40~80 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 250mV/0.25V |
| 耗散功率PcPower Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon epitaxial Transistors High speed switching Features High speed |
| 描述与应用 | NPN硅外延晶体管 高速开关 特点 高速 |
| 规格书PDF |
