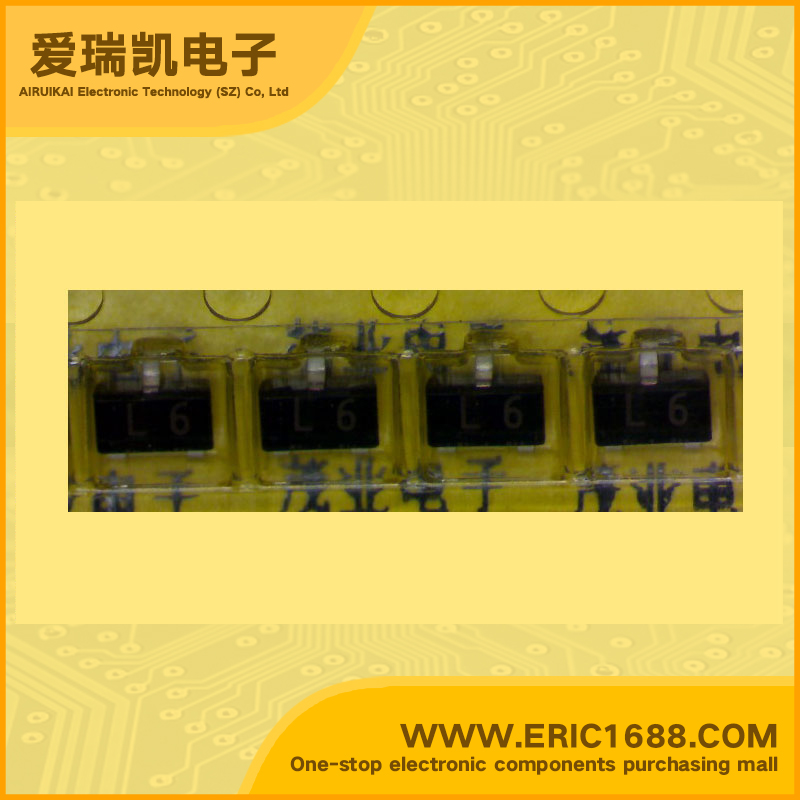

2SC1623 NPN三极管 60V 100mA/0.1A 250MHz 200~400 300mV/0.3V SOT-23/SC-59 marking/标记 L6 音频高增益放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流ICCollector Current(IC) | 100mA/0.1A |
| 截止频率fTTranstion Frequency(fT) | 250MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 200~400 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon epitaxial Transistors AUDIO FREQUENCY GENERAL PURPOSE AMPLIFIER FEATURES: . High DC Current Gain . High Voltage: VCEO = 50 V |
| 描述与应用 | NPN硅外延晶体管, 音频通用放大器. 特点: 高DC电流增益 高电压：VCEO= 50 V |
| 规格书PDF |
