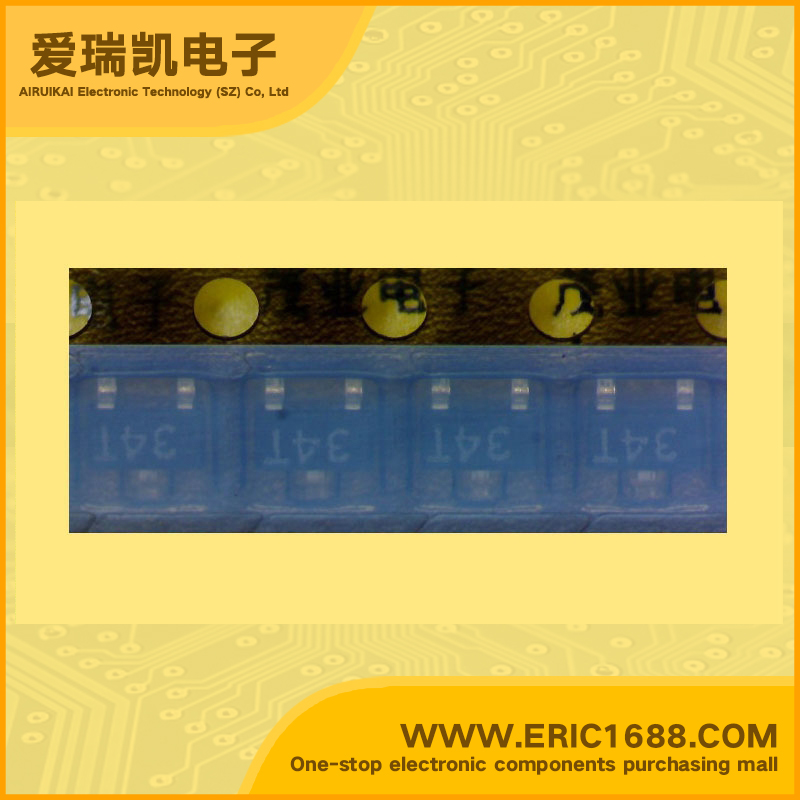

2SC2757R-T2B NPN三极管 30V 50mA 1.1GHz 500mV/0.5V SOT-23/SC-59 marking/标记 34T UHF/VHF振荡器和VHF混频器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 1.1GHz |
| 直流电流增益hFEDC Current Gain(hFE) | |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | NPN Silicon Transistors UHF/VHF oscillator and VHF mixer Features High gain bandwidth product Low collector to base time constant Low output capacitance |
| 描述与应用 | NPN硅晶体管 UHF/ VHF振荡器和VHF混频器 特点 高增益带宽积 低集电极基时间常数 低输出电容 |
| 规格书PDF |
