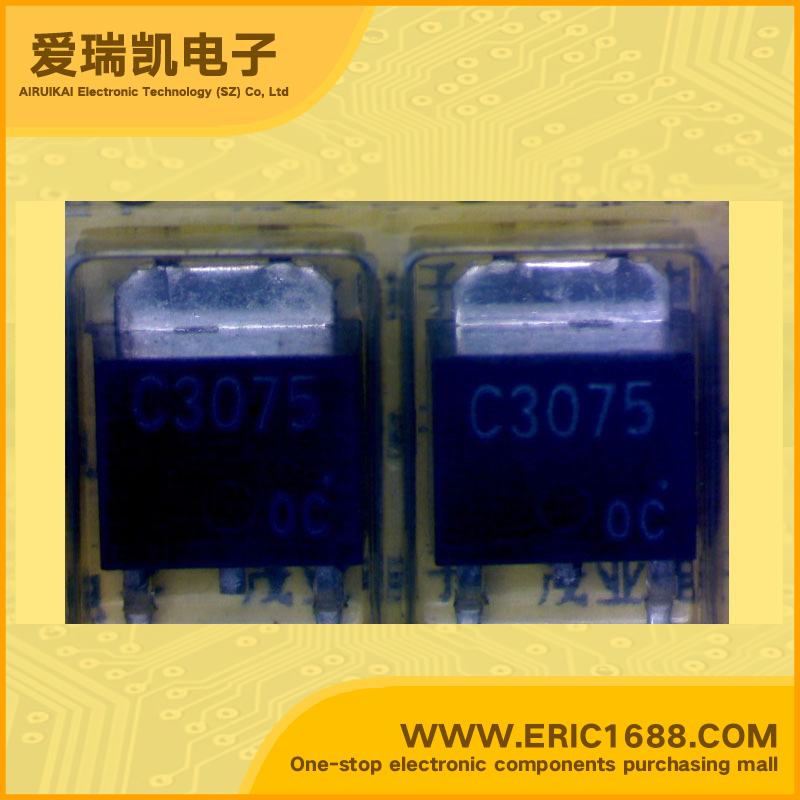

2SC3075-Y NPN三极管 500V 800mA/0.8A 20~100 500mV/0.5V TO-252/DPAK/PW-Mold marking/标记 C3075 开关稳压 高压开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 500V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 400V |
| 集电极连续输出电流ICCollector Current(IC) | 800mA/0.8A |
| 截止频率fTTranstion Frequency(fT) | |
| 直流电流增益hFEDC Current Gain(hFE) | 20~100 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | NPN Triple Diffused Type Silicon Transistor Switching Regulator and High Voltage Switching Applications DC-DC Converter Applications DC-AC Converter Applications Features Excellent switching times High collector breakdown voltage |
| 描述与应用 | NPN型三重扩散型硅晶体管 开关稳压器和高压开关 应用 DC-DC转换器应用 DC-AC转换器应用 特点 优良的开关时间 高集电极击穿电压 |
| 规格书PDF |
