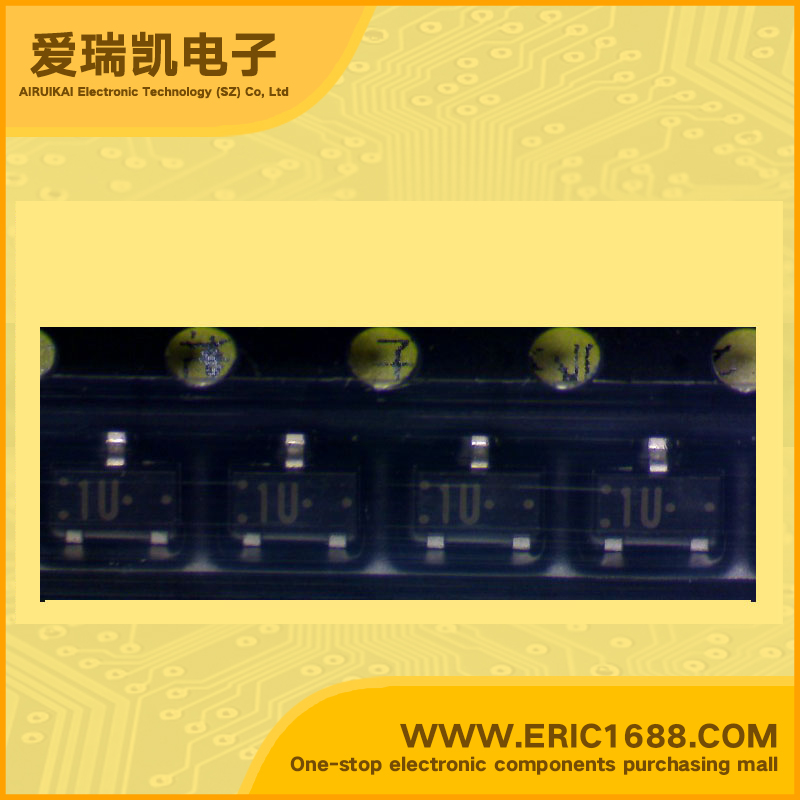

2SC3110 NPN三极管 15V 30mA 4.5Ghz 40 SOT-23/SC-59 marking/标记 IU 低噪声射频放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流ICCollector Current(IC) | 30mA |
| 截止频率fTTranstion Frequency(fT) | 4.5Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 40 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 200mW/0.2W |
| Description & Applications | NPN Silicon epitaxial planer type RF wide band amplifier low noise applications Features High fT Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. |
| 描述与应用 | NPN硅外延平面型 射频宽带放大器低噪声应用 特点 高FT 迷你型包装，让瘦身带包装盒包装的设备和通过自动插入。 |
| 规格书PDF |
