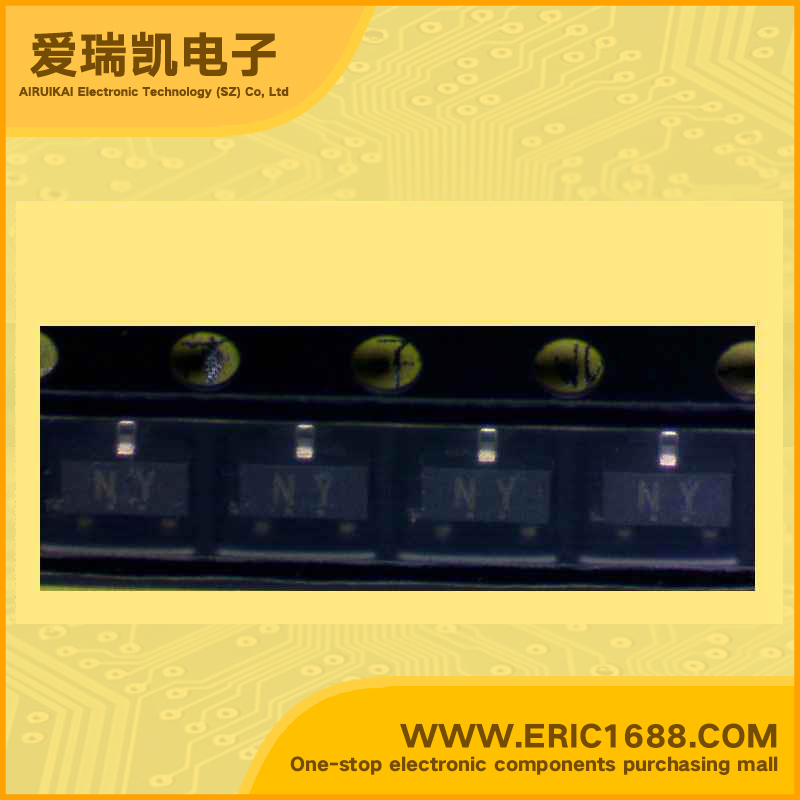

2SC3138-Y NPN三极管 200V 50mA 100MHz 120~240 500mV/0.5V SOT-23/SC-59 marking/标记 NY 高电压开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 200V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 200V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | NPN Silicon epitaxial Transistors High voltage switching applications features High voltage Small flat package Complementary to 2SA1225 |
| 描述与应用 | NPN硅外延晶体管 高电压开关应用 特点 高压 小扁平封装 互补型2SA1225 |
| 规格书PDF |
