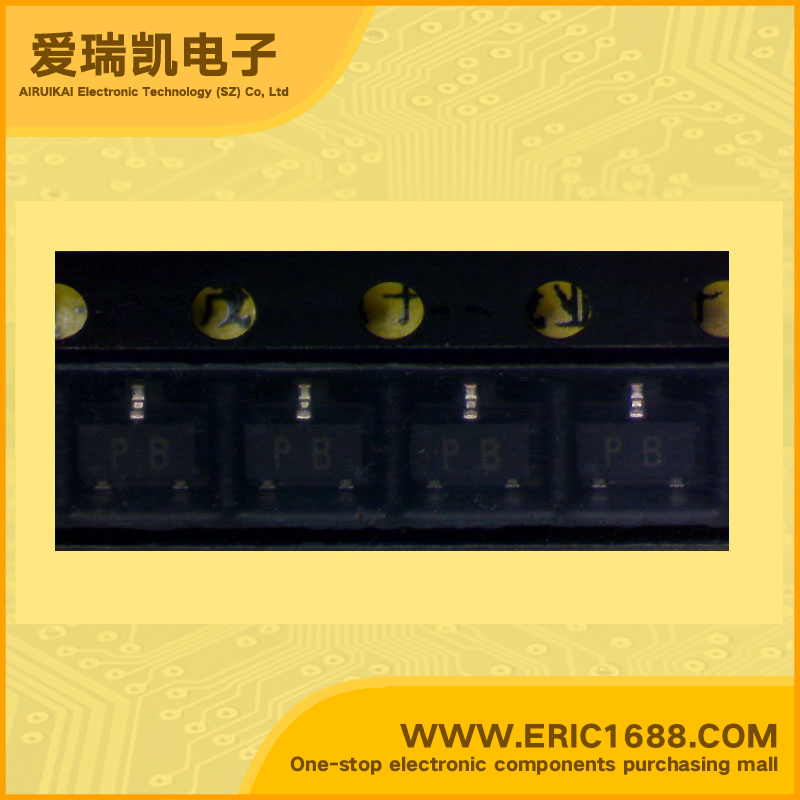

2SC3295-B NPN三极管 50V 150mA/0.15A 250MHz 1200~3600 250mV/0.25V SOT-23/SC-59 marking/标记 PB 高增益开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流ICCollector Current(IC) | 150mA/0.15A |
| 截止频率fTTranstion Frequency(fT) | 250MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 1200~3600 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 250mV/0.25V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | Audio frequencyamplifier applications Switching applications High voltage High collector current High hFE small package |
| 描述与应用 | 音频放大器应用 开关应用 高压 高集电极电流 高HFE 小包装 |
