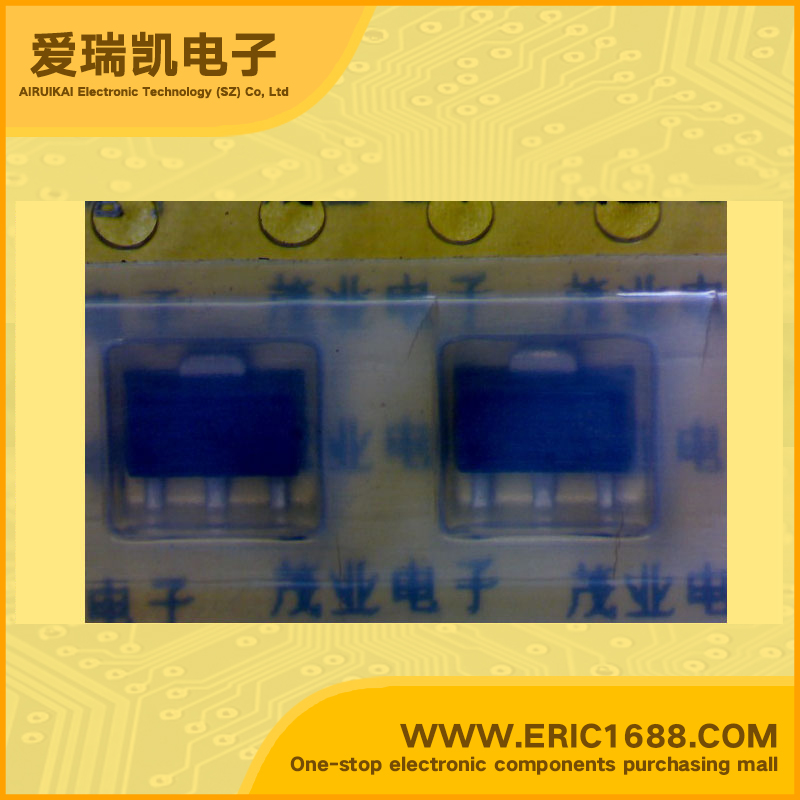

2SC3444 NPN三极管 60V 1A 80MHz 90~180 300mV/0.3V SOT-89 marking/标记 DD 继电器驱动 电源应用
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 60V |
| 集电极连续输出电流ICCollector Current(IC) | 1A |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 90~180 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 500mW/0.5W |
| Description & Applications | NPN Silicon epitaxial Transistors relay drive,power supply applications Complementary to 2SA1364 Features High Voltage High collector to dissipation Switching applications Small package for mounting Applications Audio machine ,VCR,relay drive,power supply |
| 描述与应用 | NPN硅外延晶体管 继电器驱动器，电源中的应用 互补2SA1364 特点 高电压 高集电极耗散 开关应用 小安装包 应用 音频机，录像机，继电器驱动，电源 |
| 规格书PDF |
