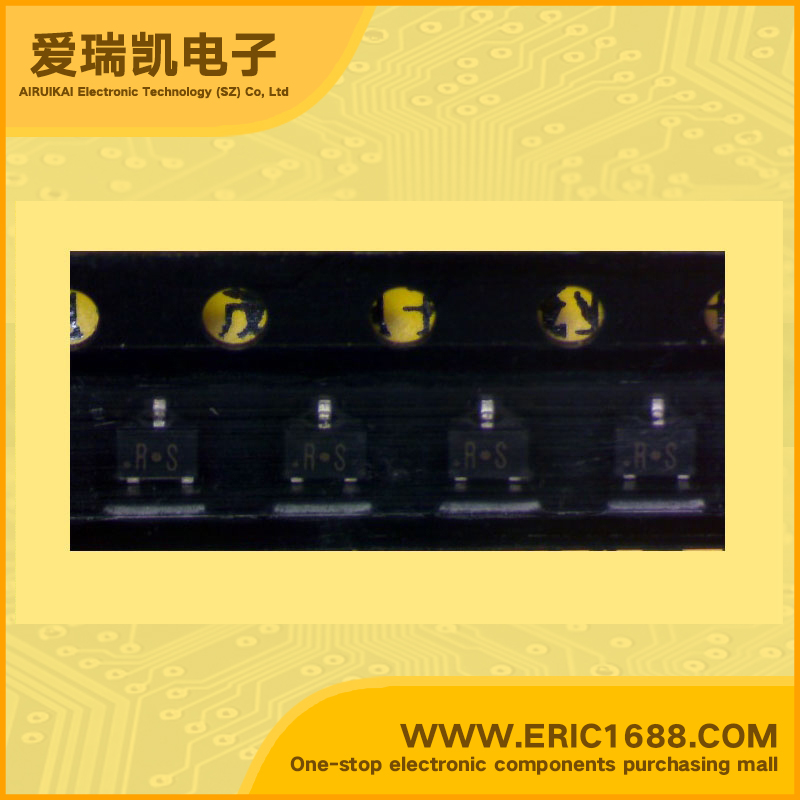

2SC3932-S NPN三极管 30V 50mA 1Ghz~1.6Ghz 25~250 SOT-323/SC-70 marking/标记 RS 高频放大/振荡/混频
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 1Ghz~1.6Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 25~250 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN epitaxial planer type For high-frequency amplification/oscillation/mixing High transition frequency fT S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | NPN硅外延平面型 用于高频放大/振荡/混频 高转换频率FT S-迷你型包装，通过带盒包装允许减小设备规模和自动插入 |
| 规格书PDF |
