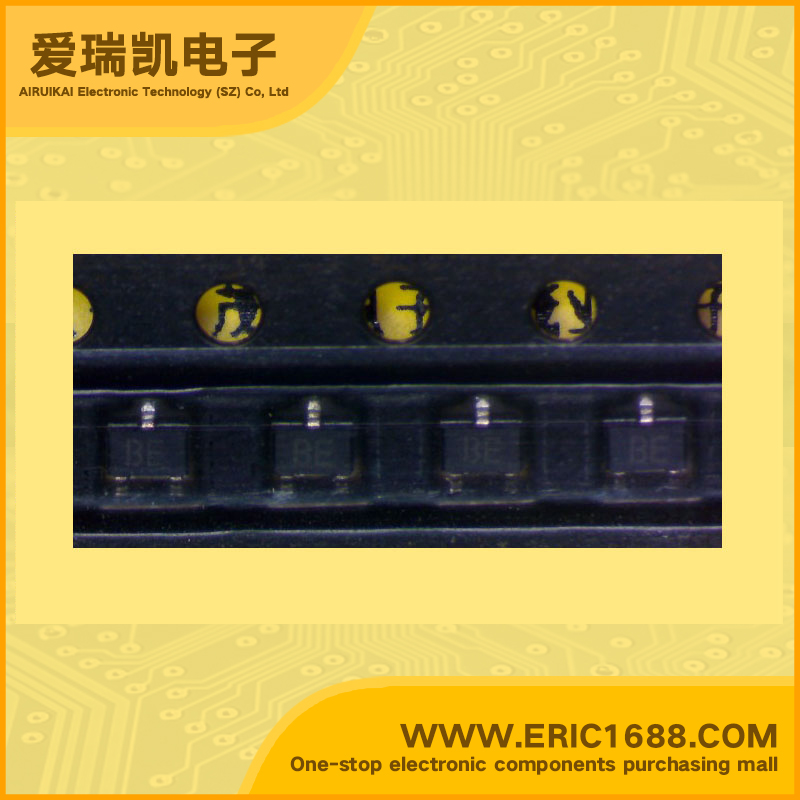

2SC4081 NPN三极管 60V 150mA/0.15A 180MHz 400mV/0.4V SOT-323/SC-70/UMT3 marking/标记 BE
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流ICCollector Current(IC) | 150mA/0.15A |
| 截止频率fTTranstion Frequency(fT) | 180MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~560 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 400mV/0.4V |
| 耗散功率PcPower Dissipation | 200mW/0.2W |
| Description & Applications | General purpose transistor Low Cob Cob=2.0pF |
| 描述与应用 | 通用晶体管 低COB Cob=2.0pF |
| 规格书PDF |
