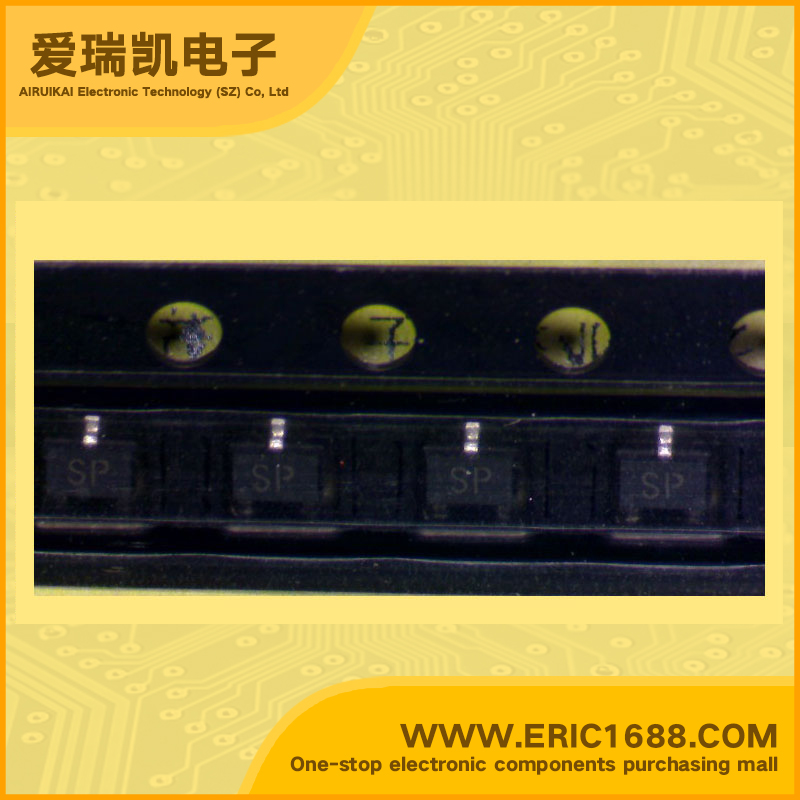

2SC4100 NPN三极管 30V 50mA 1.1GHz 82~180 200mV/0.2V SOT-323/SC-70/UMT3 marking/标记 SP 射频放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 19V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 1.1GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 82~180 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 200mV/0.2V |
| 耗散功率PcPower Dissipation | 100mW/0.1W |
| Description & Applications | Epitaxial planar NPN Silicon transistor RF Amplifier High transition frequency Low output capacitance Low base resistance for high gain and excellent noise response |
| 描述与应用 | 外延平面NPN硅晶体管 射频放大器 高转换频率 低输出电容 低基极电阻和良好的噪声响应 |
