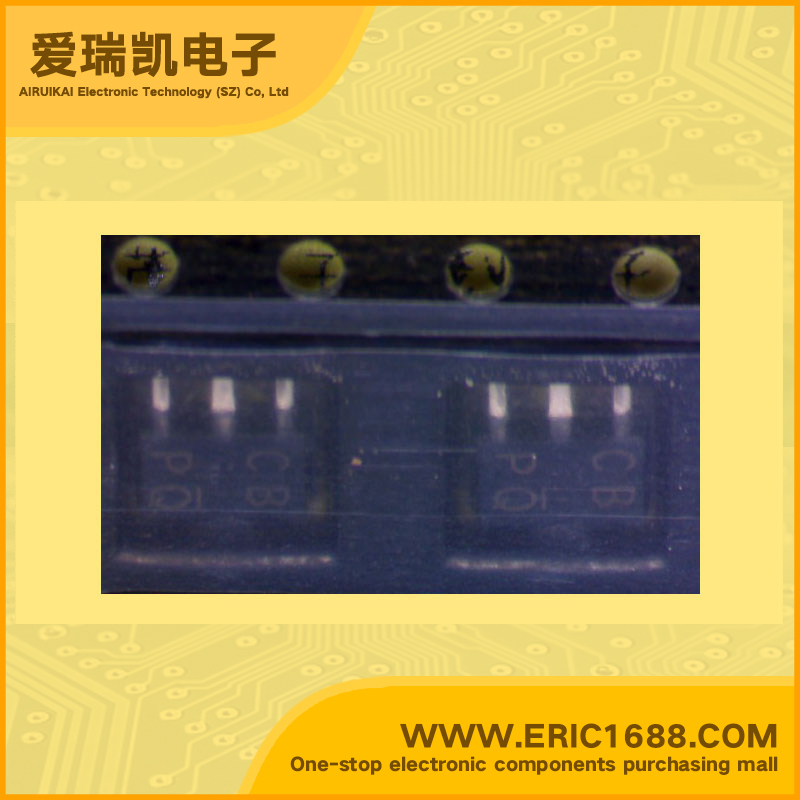

2SC4132-P NPN三极管 120V 2A 80MHz 82~180 400mV/0.4V SOT-89/SC-62/MPT3 marking/标记 CBP 功率晶体管
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 120V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 120V |
| 集电极连续输出电流ICCollector Current(IC) | 2A |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 82~180 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 400mV/0.4V |
| 耗散功率PcPower Dissipation | 0.5W~2W |
| Description & Applications | Power Transistor High breakdown voltage Low collector output capacitance High transition frequency Complements the 2SB1236 |
| 描述与应用 | 功率晶体管 高击穿电压 低集电极输出电容 高转换频率 与2SB1236互补 |
| 规格书PDF |
