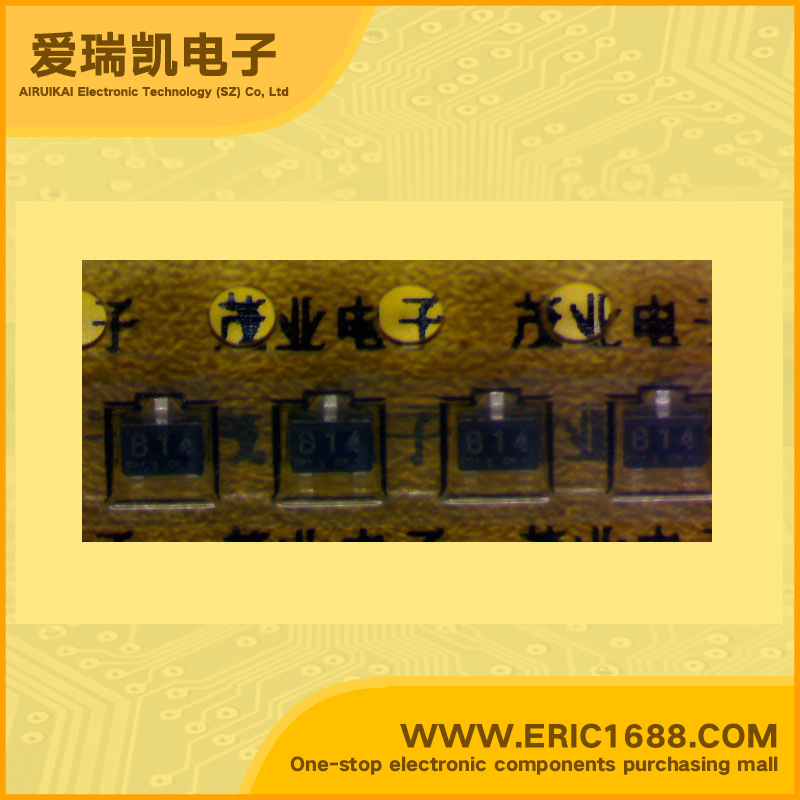

2SC4173 NPN三极管 60V 500mA/0.5A 400MHz 150~300 250mV/0.25V SOT-323/SC-70 marking/标记 B14 高频放大器 开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流ICCollector Current(IC) | 500mA/0.5A |
| 截止频率fTTranstion Frequency(fT) | 400MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 150~300 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 250mV/0.25V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | HIGH FREQUENCY AMPLIFIER AND SWITCHING NPN Silicon Epitaxial transistor High Gain Bandwidth Product Complementary to 2SA1608 |
| 描述与应用 | 高频放大器和开关 NPN硅外延晶体管 高增益带宽产品 与2SA1608互补 |
| 规格书PDF |
