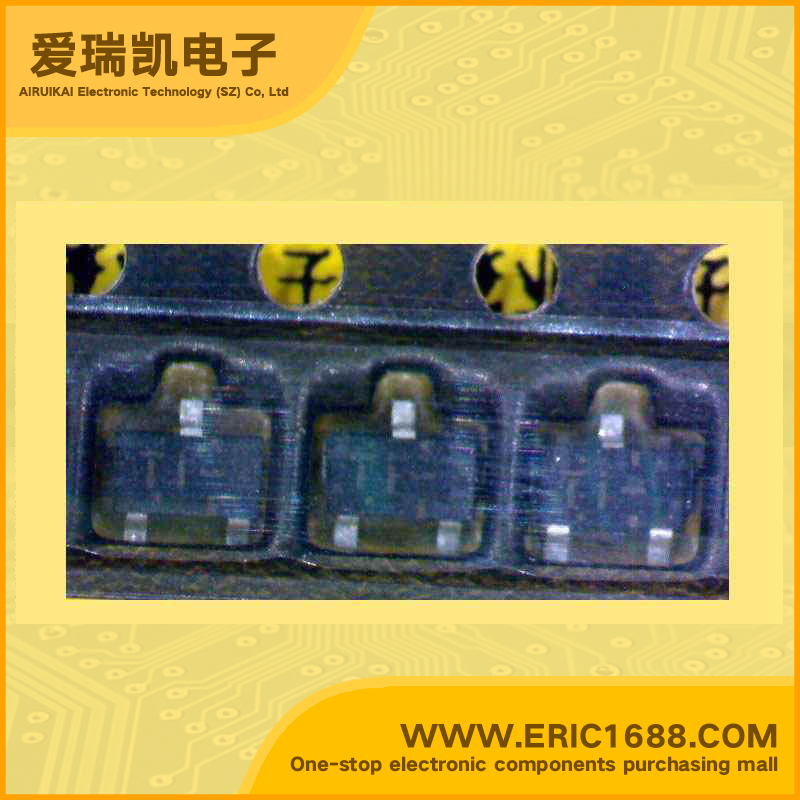

2SC4197 NPN三极管 25V 50mA 3.8Ghz 50~180 300mV/0.3V SOT-23/SC-59/MPAK marking/标记 TI UHF本地振荡器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 25V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 13V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 3.8Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 50~180 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN Epitaxial UHF Local oscillator |
| 描述与应用 | NPN硅外延 UHF Local oscillator |
| 规格书PDF |
