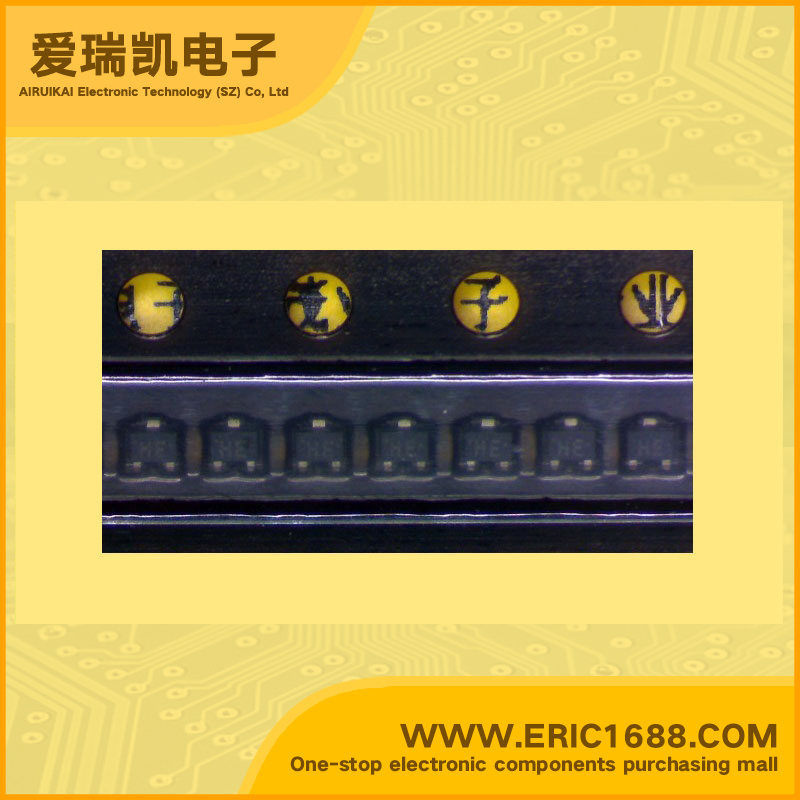

2SC4250FV NPN三极管 30V 50mA 1.4GHz 150 sot-523/VESM marking/标记 HE TV甚高频混频器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 1.4GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 150 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 100mW/0.1W |
| Description & Applications | TOSHIBA Transistor Silicon NPN Epitaxial planar Type TV VHF MIXER APPLICATIONS High Conversion Gain Low Reverse Transfer Capacitance |
| 描述与应用 | 东芝晶体管NPN硅外延平面型 视甚高频混频器应用 高转换增益 低反向传输电容 |
| 规格书PDF |
