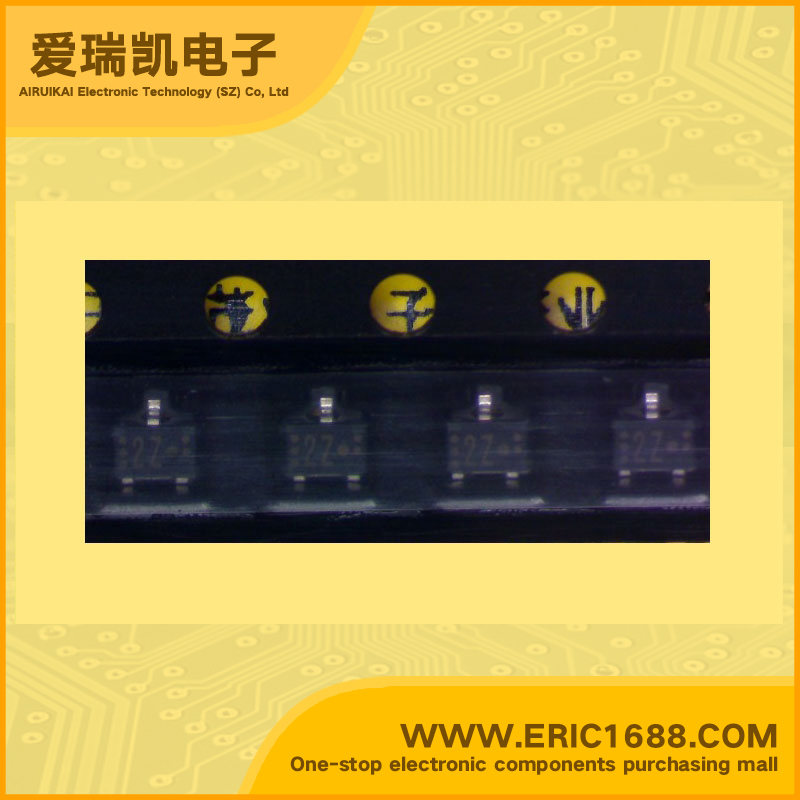

2SC4417 NPN三极管 45V 50mA 500MHz 50 500mV/0.5V SOT-323/SC-70 marking/标记 2Z 电视图像中频放大

热销商品

产品描述
集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO)45V
集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO)35V
集电极连续输出电流ICCollector Current(IC)50mA
截止频率fTTranstion Frequency(fT)500MHz
直流电流增益hFEDC Current Gain(hFE)50
管压降VCE(sat)Collector-Emitter Saturation Voltage500mV/0.5V
耗散功率PcPower Dissipation150mW/0.15W
Description & ApplicationsSilicon NPN epitaxial planer type For intermediate frequency amplification of TV image High transition frequency fT. Satisfactory linearity of forward current transfer ratio hFE S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing
描述与应用NPN硅外延平面型 用于电视图像中频放大 高转换频率FT 良好的线性正向电流传输比HFE S-迷你型包装,通过盒带封装允许缩减设备和自动插入
规格书PDF
