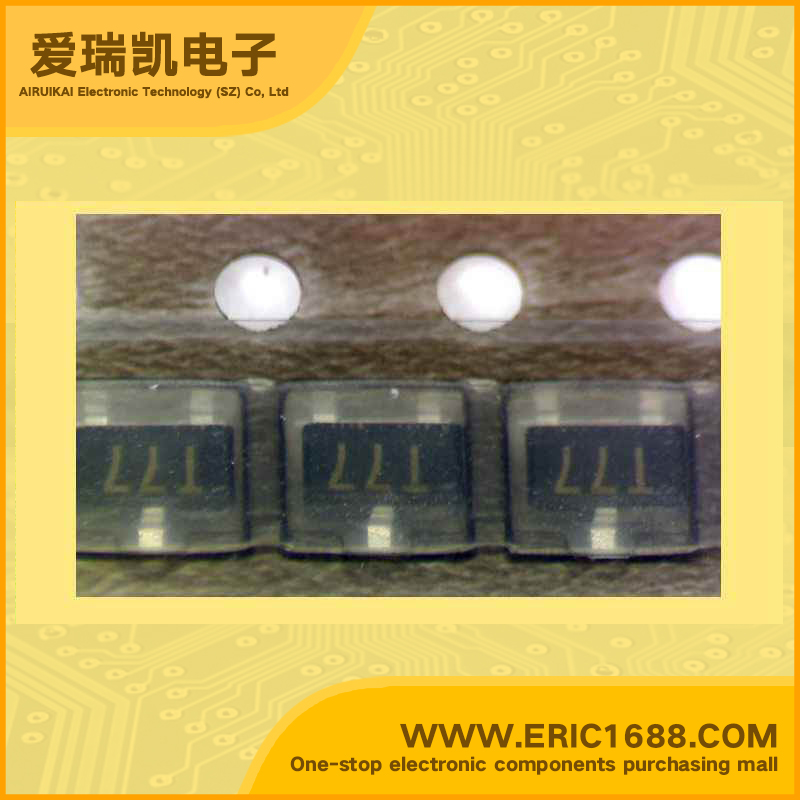

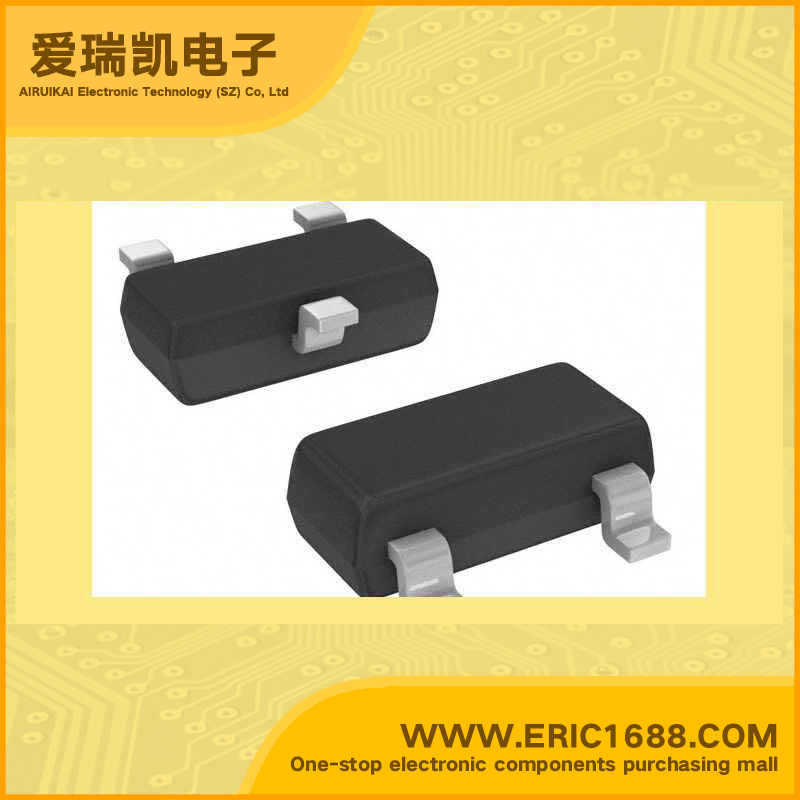

2SC4569 NPN三极管 20V 60mA 5GHz 100~200 500mV/0.5V SOT-23/SC-59 marking/标记 T77 超高频电视调谐器/振荡器/混频器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流ICCollector Current(IC) | 60mA |
| 截止频率fTTranstion Frequency(fT) | 5GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | UHF TV TUNER OSC/MIXER NPN SILICON EPITAXIAL TRANSISTOR High gain bandwidty product fT = 5.0 GHz Low output capacitance Cob = 0.9 pF Surface mount package |
| 描述与应用 | 超高频电视调谐器OSC/混频器 NPN硅外延晶体管 高增益 FT =5.0 GHz 低输出电容 COB=0.9 pF 表面贴装型封装 |
| 规格书PDF |
