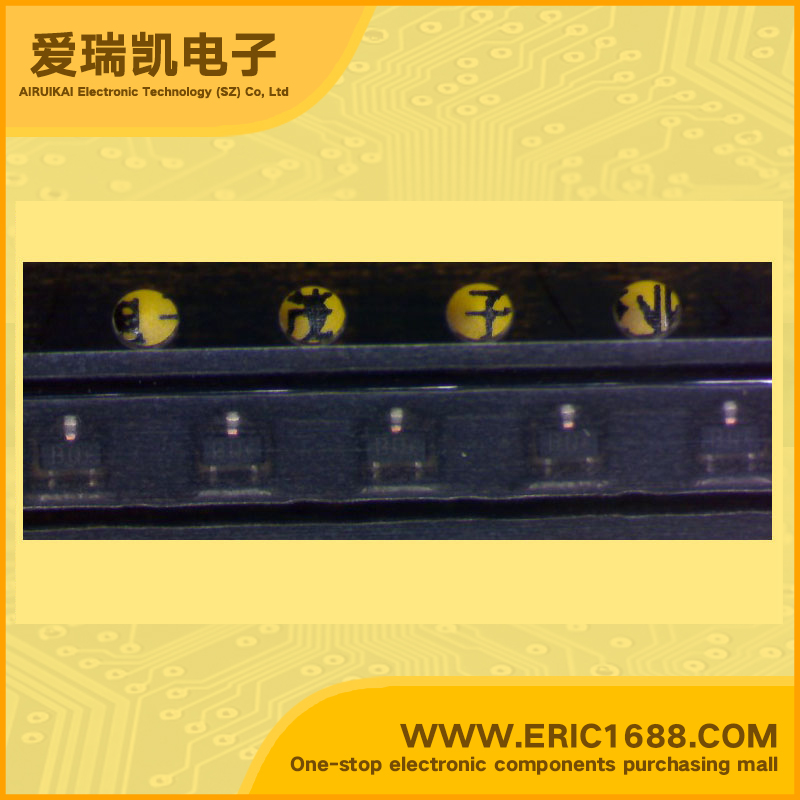

2SC4617 NPN三极管 50V 100mA/0.1A 180MHz 120~270 400mV/0.4V sot-523 marking/标记 BQ 放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流ICCollector Current(IC) | 150mA/0.15A |
| 截止频率fTTranstion Frequency(fT) | 180MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~270 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 400mV/0.4V |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | General purpose transistor Low Cob Cob=2.0pF Epitaxial planar type NPN silicon transistor |
| 描述与应用 | 通用晶体管 低COB COB=2.0PF 外延平面型 NPN硅晶体管 |
| 规格书PDF |
