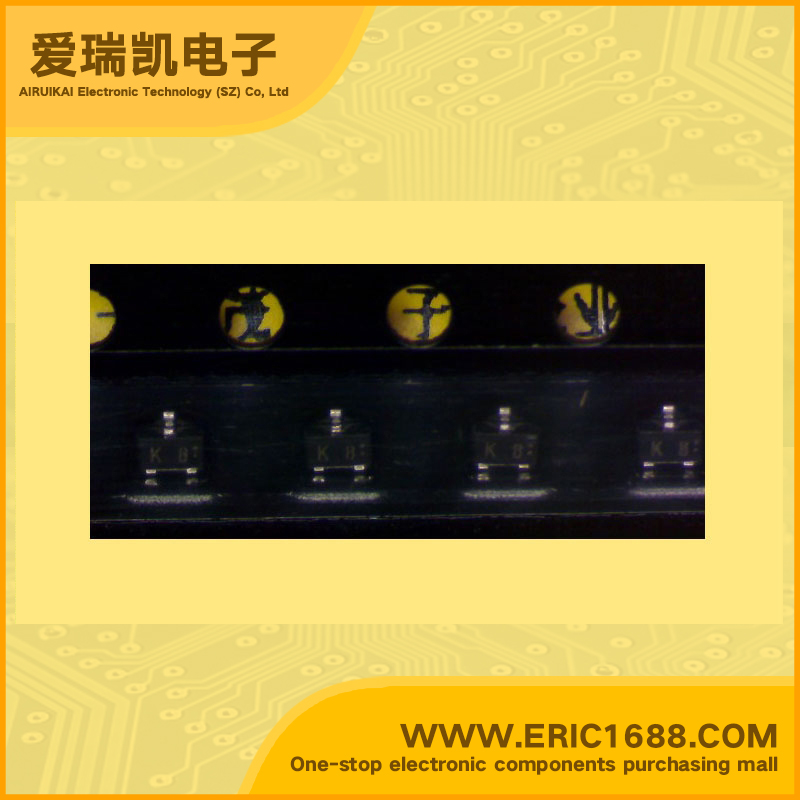

2SC4655-B NPN三极管 30V 30mA 230MHz 70~160 SOT-523/SC-75 marking/标记 KB 射频放大 振荡 混合
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流ICCollector Current(IC) | 30mA |
| 截止频率fTTranstion Frequency(fT) | 230MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 70~160 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 125mW/0.125W |
| Description & Applications | Features •Silicon PNP epitaxial planer type •For high-frequency amplification •Optimum for RF amplification, oscillation, mixing, and IF of FM/AM radios. •SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing |
| 描述与应用 | 特点 •PNP硅外延平面型高频放大 •最佳射频放大，振荡，混合，中频的FM/ AM收音机。 •SS-迷你型包装，让瘦身的设备通过自动插入磁带包装 |
| 规格书PDF |
