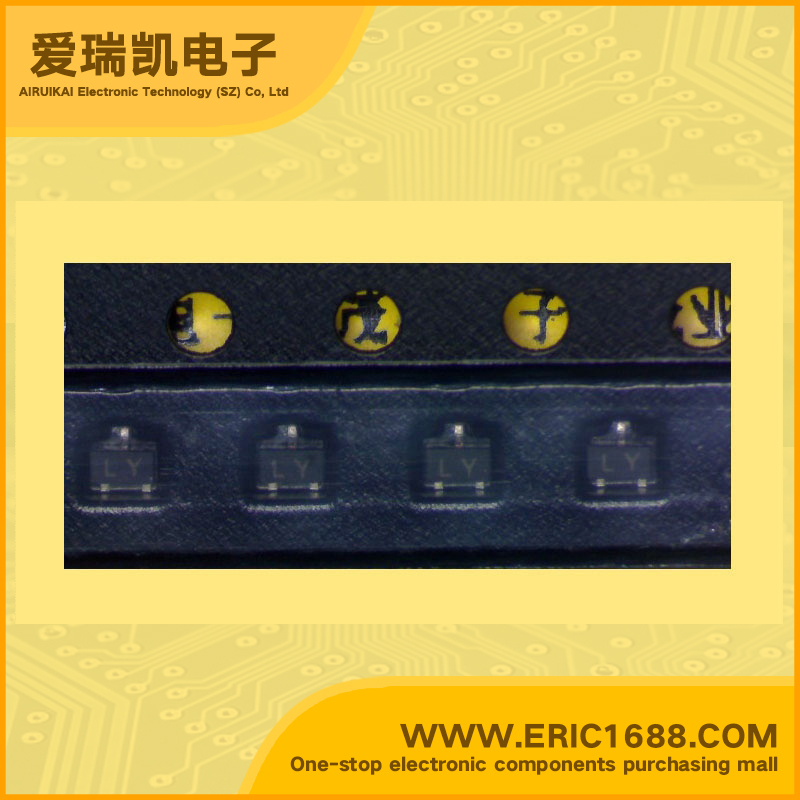

2SC4738 NPN三极管 60V 150mA/0.15A 80MHz 120~240 100mV/0.1V SOT-323/SC-70/USM marking/标记 LY 音频通用放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流ICCollector Current(IC) | 150mA/0.15A |
| 截止频率fTTranstion Frequency(fT) | 80MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 100mV/0.1V |
| 耗散功率PcPower Dissipation | 100mW/0.1W |
| Description & Applications | Features •TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) •Audio Frequency General Purpose Amplifier Applications •High Voltage: VCEO = 50 V •High Current: IC = 150 mA (max) •High hFE: hFE = 120 ~ 700 •Excellent hFE Linearity : hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ.) •Complementary to 2SA1832 •Small package |
| 描述与应用 | 特点 •东芝晶体管的硅NPN外延式（PCT程序） •音频通用放大器应用 •高电压：VCEO= 50 V •高电流：IC=150 mA（最大） •高HFE：HFE=120〜700 •优秀的HFE线性：HFE（IC= 0.1毫安）/ HFE（IC= 2毫安）=0.95（典型值） •互补2SA1832 •小型封装 |
| 规格书PDF |
