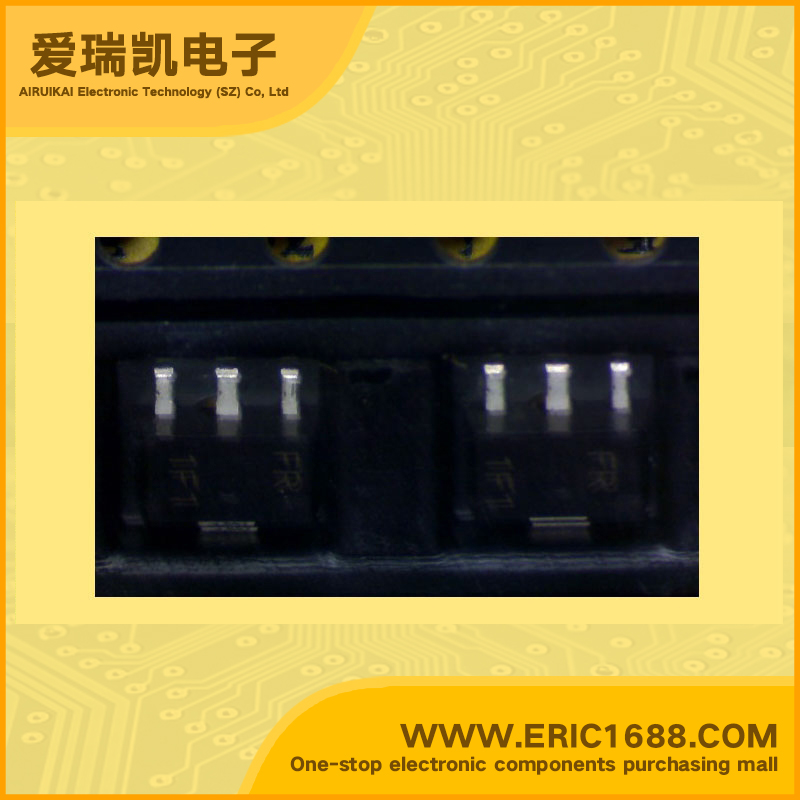

2SC4988FRTR-E NPN三极管 15V 100mA/0.1A 8.5Ghz 50~250 5V SOT-89/UPAK marking/标记 FR VHF/UHF宽频带放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 9V |
| 集电极连续输出电流ICCollector Current(IC) | 100mA/0.1A |
| 截止频率fTTranstion Frequency(fT) | 8.5Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 50~250 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 5V |
| 耗散功率PcPower Dissipation | 800mW/0.8W |
| Description & Applications | Features • Silicon NPN Epitaxial • High gain bandwidth product fT = 8.5 GHz Typ • High gain, low noise figure PG = 10.5 dB Typ, NF = 1.3 dB Typ at f = 900 MHz Application • VHF / UHF wide band amplifier |
| 描述与应用 | 特点 •NPN硅外延 •高增益带宽乘积fT=8.5 GHz的典型 •高增益，低噪声系数，PG=10.5 dB（典型值），NF= 1.3 dB（典型值）在f=900兆赫 应用 •VHF / UHF宽频带放大器 |
| 规格书PDF |
