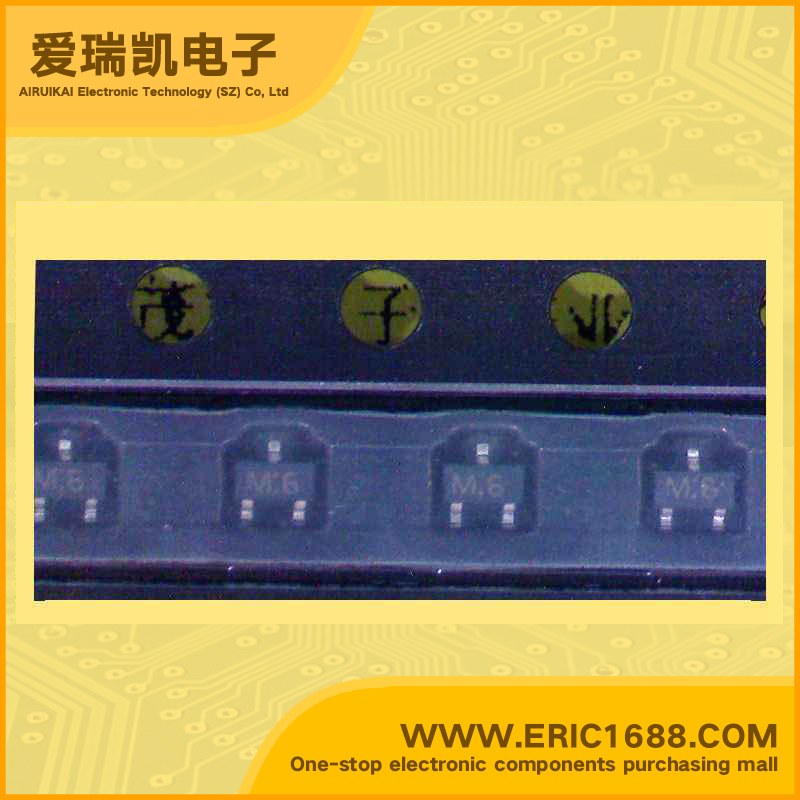

2SC5086-Y NPN三极管 20V 80mA 7GHz 120~240 SOT-523/SSM marking/标记 M6 VHF/UHF宽频带放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流ICCollector Current(IC) | 80mA |
| 截止频率fTTranstion Frequency(fT) | 7GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN epitaxial planar type VHL ~ UHF band low noise amplifier application Features • High gain |S21e|*2=11db • Low noise figure NF=1.1db |
| 描述与应用 | NPN硅外延平面型 VHL〜UHF频段低噪声放大器的应用 特点 •高增益| S21E|* 2 =11分贝 •低噪声系数NF=1.1分贝 |
| 规格书PDF |
