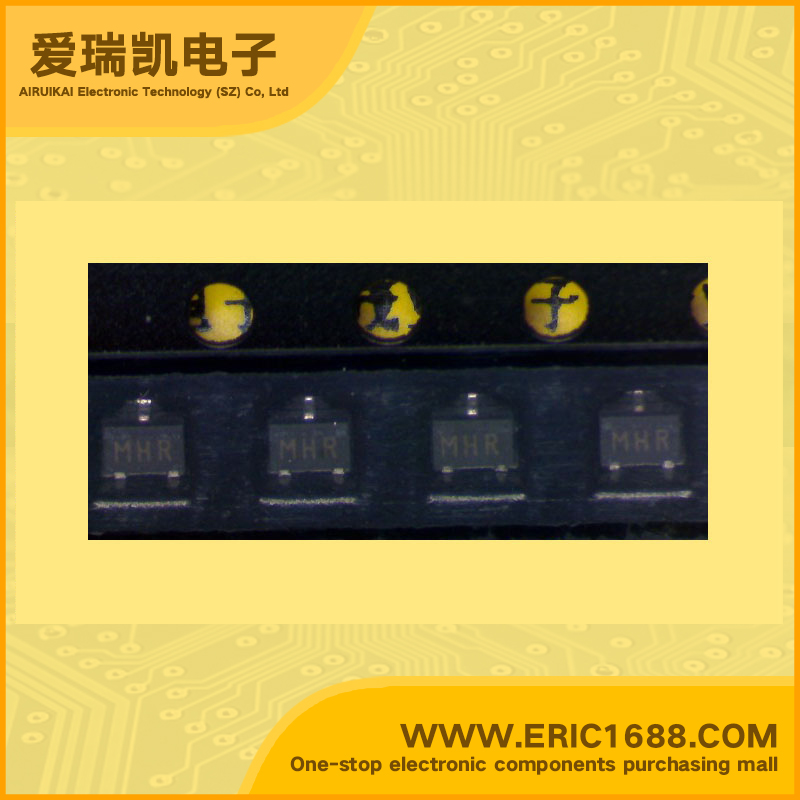

2SC5255 NPN三极管 15V 40mA 12Ghz 50~100 SOT-323/SC-70/USM marking/标记 MHR VHF/UHF低噪声宽波段放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 7V |
| 集电极连续输出电流ICCollector Current(IC) | 40mA |
| 截止频率fTTranstion Frequency(fT) | 12Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 50~100 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 100mW/0.1W |
| Description & Applications | Silicon NPN epitaxial planar type VHL to UHF wide band low noise amp application ■ Features • High gain |S21e|*2=8.5db • Low noise figure NF=1.5db |
| 描述与应用 | NPN硅外延平面型 VHL UHF宽带低噪声放大器的应用 ■特点 •高增益| S21E|* 2 =8.5分贝 •低噪声系数NF=1.5分贝 |
| 规格书PDF |
