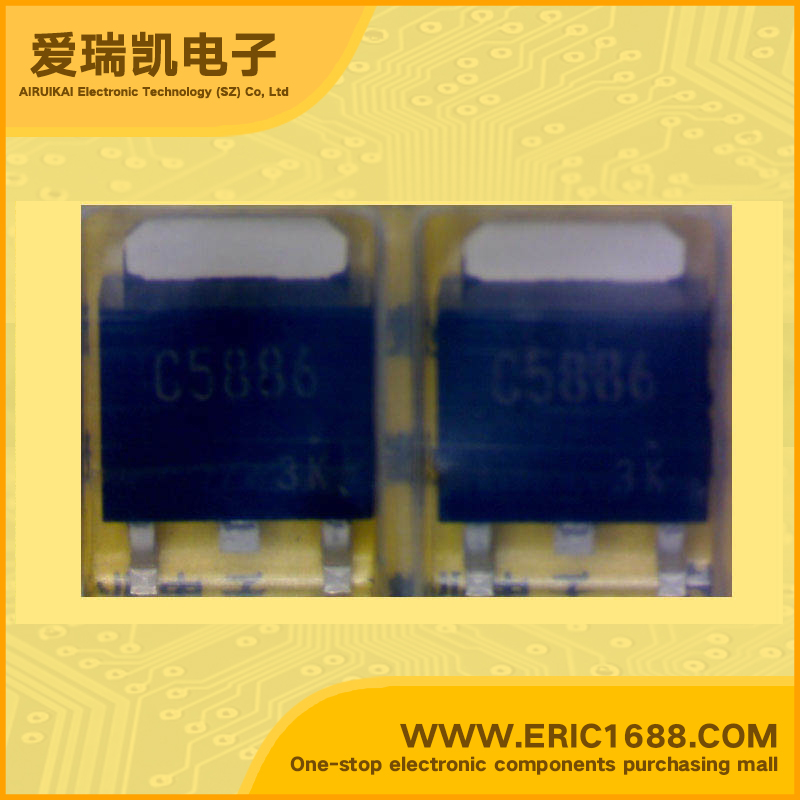

2Sc5886 NPN三极管 100V 5A 400~1000 220mV/0.22V SOT-23/SC-59 marking/标记 c5886 高速开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 100V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流ICCollector Current(IC) | 5A |
| 截止频率fTTranstion Frequency(fT) | |
| 直流电流增益hFEDC Current Gain(hFE) | 400~1000 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 220mV/0.22V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | Transistor Silicon NPN Epitaxial Type High-Speed Switching Applications DC-DC Converter Applications Strobe Applications • High DC current gain: hFE = 200 to 500 (IC = 0.5 A) • Low collector-emitter saturation voltage: VCE (sat) = 0.2 V (max) • High-speed switching: tf = 25 ns (typ.) |
| 描述与应用 | 晶体管的硅NPN外延型 高速开关应用 DC-DC转换器应用 频闪应用 •高直流电流增益：HFE=200〜500（IC= 0.5 A） •低集电极 - 发射极饱和电压VCE（饱和）=0.2 V（最大值） •高速开关：TF =25 ns |
| 规格书PDF |
