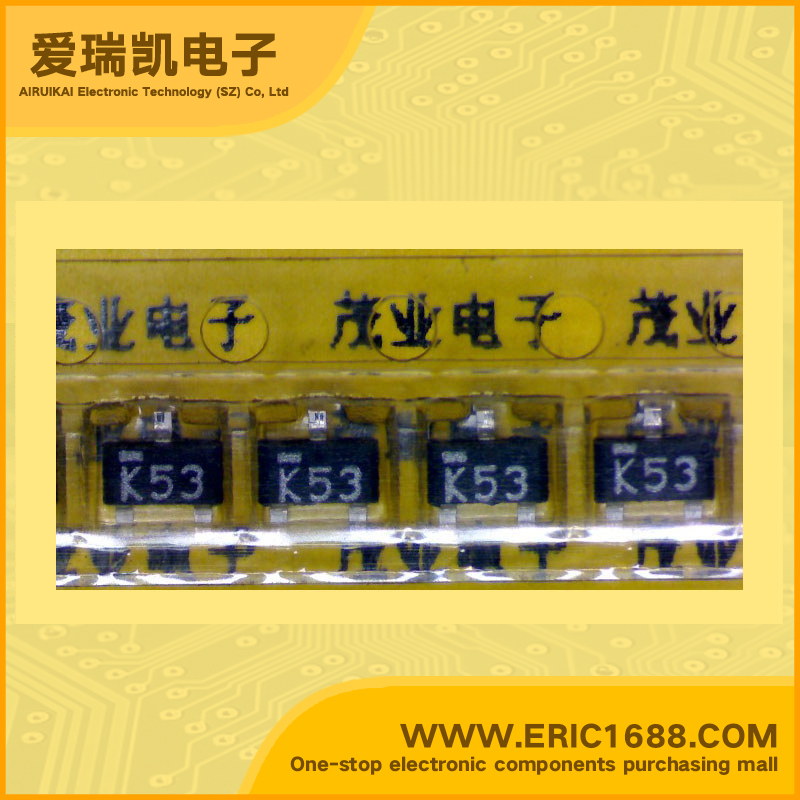

2SK508 N沟道结型场效应管 15v 25~50mA SOT-23 marking/标记 K53 高频放大器
| 最大源漏极电压VdsDrain-Source Voltage | 15v |
| 栅源极击穿电压V(BR)GSGate-Source Voltage | -15v |
| 漏极电流(Vgs=0V)IDSSDrain Current | 25~50ma |
| 关断电压Vgs(off)Gate-Source Cut-off Voltage | -0.6~-3.5v |
| 耗散功率PdPower Dissipation | 200mW/0.2W |
| Description & Applications | HIGH FREQUENCY AMPLIFIER N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR •HIGH FREQUENCY AMPLIFIER •Low input capacitance Ciss = 4.8 pF TYP. (VDS = 5.0 V, ID = 10 mA, f = 1.0 MHz) • High forward transfer admittance | yfs |2 = 26 mS TYP. (VDS = 5.0 V, VGS = 0 V, f = 1.0 kHz) |
| 描述与应用 | 高频放大器 N-沟道硅结型场效应晶体管 •高频放大器 •低输入电容 西斯=4.8 pF的TYP。 （VDS=5.0 V，ID=10 mA时，F =1.0兆赫） •高正向转移导纳 |的YFS|2= 26 ms典型。 （VDS= VGS=0 V，5.0 V，f = 1.0千赫） |
| 规格书PDF |
