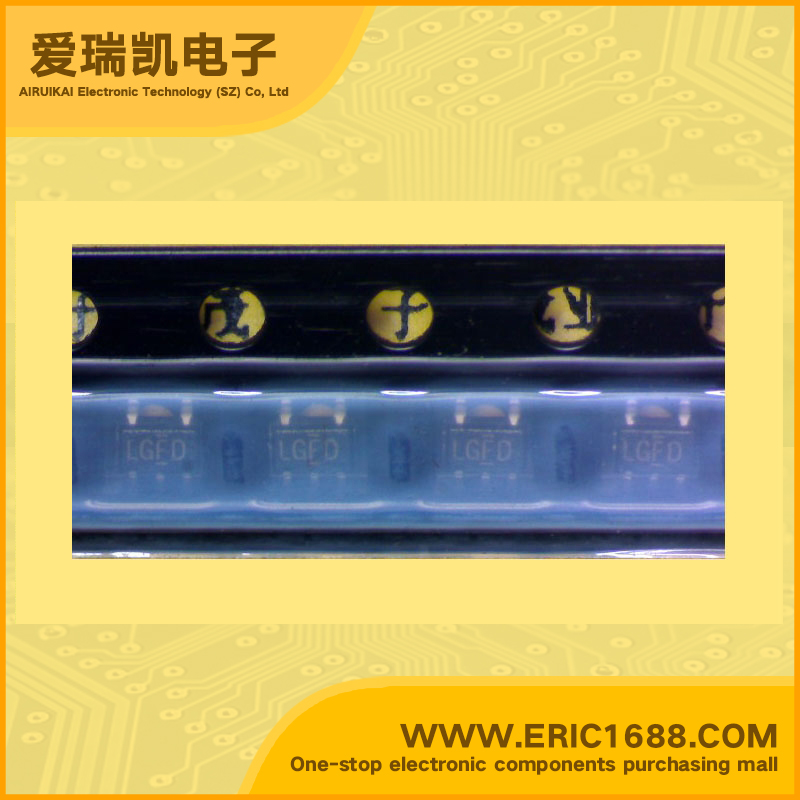

集成电路IC 或门 74LVC1G32ADY SOT-353/PSOP5 marking/标记 LG
| 逻辑类型Logic Type | 或门 OR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 1.65V~3.6V |
| 静态电流IqCurrent - Quiescent (Max) | 500uA |
| 输出高，低电平电流Current - Output High, Low | -24mA，24mA |
| 低逻辑电平Logic Level - Low | 0.7V~0.8V |
| 高逻辑电平Logic Level - High | 1.7V~2V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | |
| Description & Applications | SINGLE 2-INPUT POSITIVE-OR GATE；FEATURES 0.5 MICRON CMOS Technology ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) 0.65mm pitch PSOP package Extended commercial range of – 40°C to +85°C VCC = 3.3V ±0.3V, Normal Range VCC = 1.65V to 3.6V, Extended Range VCC = 2.5V ±0.2V CMOS power levels (0.4µ W typ. static) Rail-to-Rail output swing for increased noise margin All inputs, outputs and I/O are 5 Volt tolerant Supports hot insertion |
| 描述与应用 | 单双输入正或门；特性 0.5微米CMOS技术 ESD> 2000V每MIL-STD-883方法3015; > 200V使用机型（C =200pF的，R = 0） 0.65mm间距PSOP包装 扩展商业范围 - 40°C至+85°C VCC=3.3V±0.3V，正常范围 VCC= 1.65V至3.6V，扩展范围 VCC=2.5V±0.2V CMOS功率水平（0.4μW TYP静） 轨到轨输出摆幅噪声裕量增加 所有输入，输出和I / O是5伏宽容 支持热插入 |
| 规格书PDF |
