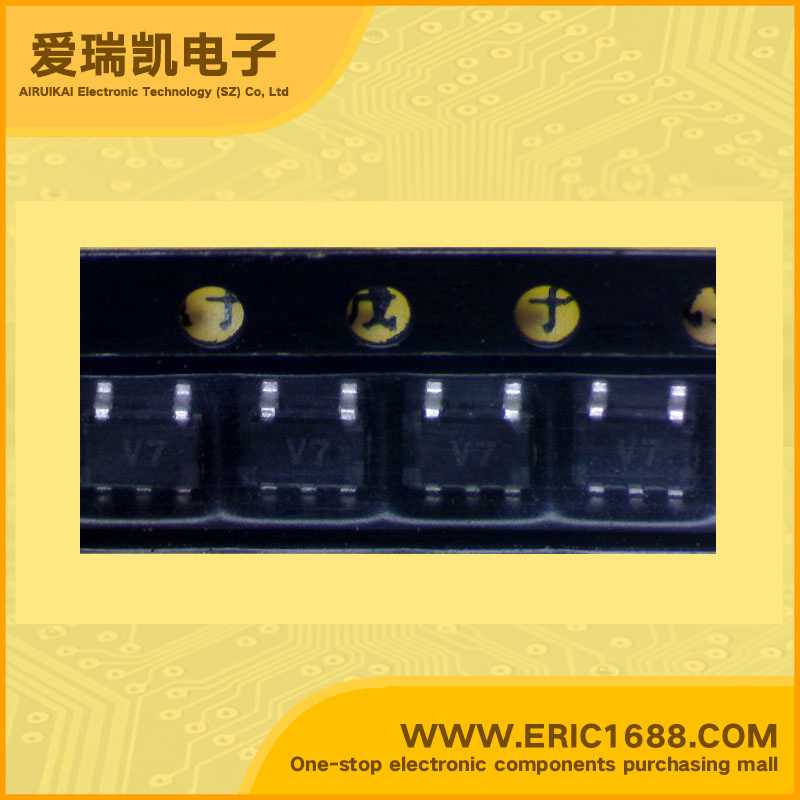

集成电路IC 异或门 74V1G86STR SOT-153/SOT23-5/SC-74A marking/标记 V7
| 逻辑类型Logic Type | 异或门 XOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -8mA，8mA |
| 低逻辑电平Logic Level - Low | 0.3V~1.1V |
| 高逻辑电平Logic Level - High | 1.7V~4.4V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 7.5ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | SINGLE EXCLUSIVE-OR GATE;FEATURES HIGH SPEED: tPD = 3.8ns (TYP.) at VCC = 5V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.) POWER DOWN PROTECTION ON INPUTS SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN) at VCC = 4.5V BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 5.5V IMPROVED LATCH-UP IMMUNITY |
| 描述与应用 | 单异或门;特性 高速：TPD =3.8ns电源（VCC = 5V时典型值） 低功耗： ICC=1μA（最大值）在TA = 25°C 高抗干扰性： VNIH= VNIL VCC=28％（最小） 掉电保护的投入 对称的输出阻抗： | IOH= IOL = VCC= 4.5V8毫安（MIN） 平衡传输时延： TPLH≅TPHL 工作电压范围： VCC（OPR）=2V到5.5V 改进的锁存-抗扰度 |
