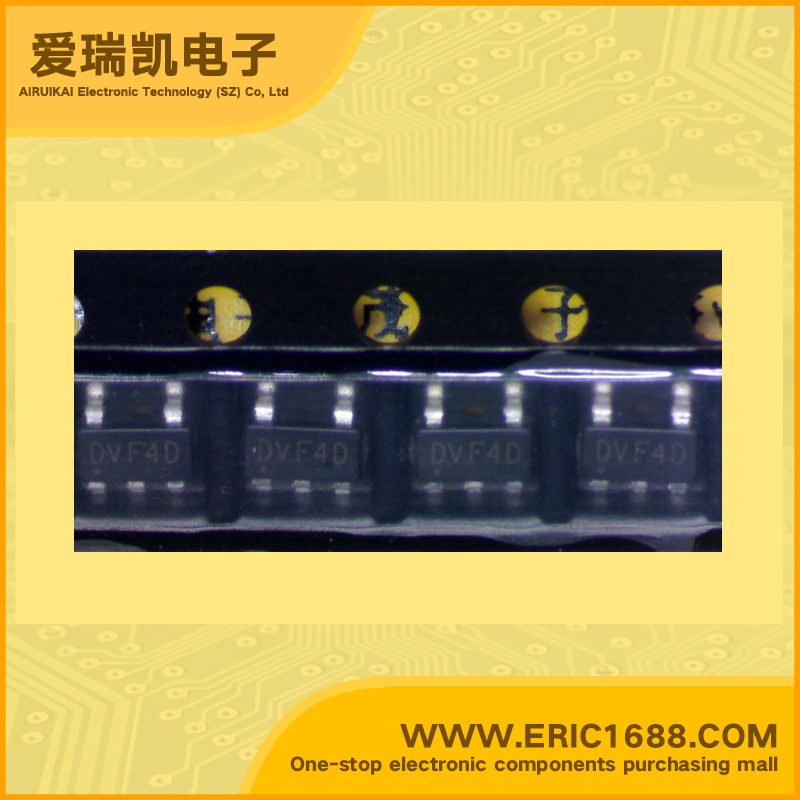

AAT3215IGV-2.9-T1 LDO电压调整器/稳压电源IC 2.9V 140mV/0.14V 带使能脚EN/CE SOT-153/SOT23-5 marking/标记 DVF4D 短路保护 过热保护

热销商品

产品描述
电路数量Number of Regulators1
输入电压VINVoltage - Input6V
输出电压VOUTVoltage - Output2.9V
输出电流IoCurrent - Output150mA/0.15A
最大压降VDOVoltage - Dropout140mV/0.14V
带使能脚EN/CE(ON/OFF功能)With Enable Pin有 Yes
最大耗散功率PdPower dissipation526mW/0.526W
Description & Applications150mA CMOS High Performance LDO;• Low Dropout: 140mV at 150mA • Guaranteed 150mA Output • High Accuracy ±1.5% • 95µA Quiescent Current • High Power Supply Ripple Rejection — 70dB at 1kHz — 50dB at 10kHz • Very Low Self Noise: 45µVrms • Fast Line and Load Transient Response • Short-Circuit Protection • Over-Temperature Protection • Uses Low Equivalent Series Resistance (ESR) Ceramic Capacitors • Noise Reduction Bypass Capacitor • Shutdown Mode for Longer Battery Life • Low Temperature Coefficient • Ten Factory-Programmed Output Voltages • SOT23 5-Pin or SC70JW 8-Pin Package
描述与应用150MA CMOS高性能LDO;•低压差:150mA时压差为140mV •保证150mA输出 •高精度±1.5% •95μA静态电流 •高电源纹波抑制 - 1kHz时为70dB - 10kHz时为50dB •极低的自噪声:45μVRMS •快速电压和负载瞬态响应 •短路保护 •过温保护 •使用低等效串联电阻 (ESR)陶瓷电容器 •降噪绕道电容 •关断模式,有/yes更长的电池寿命 •低温度系数
规格书PDF
