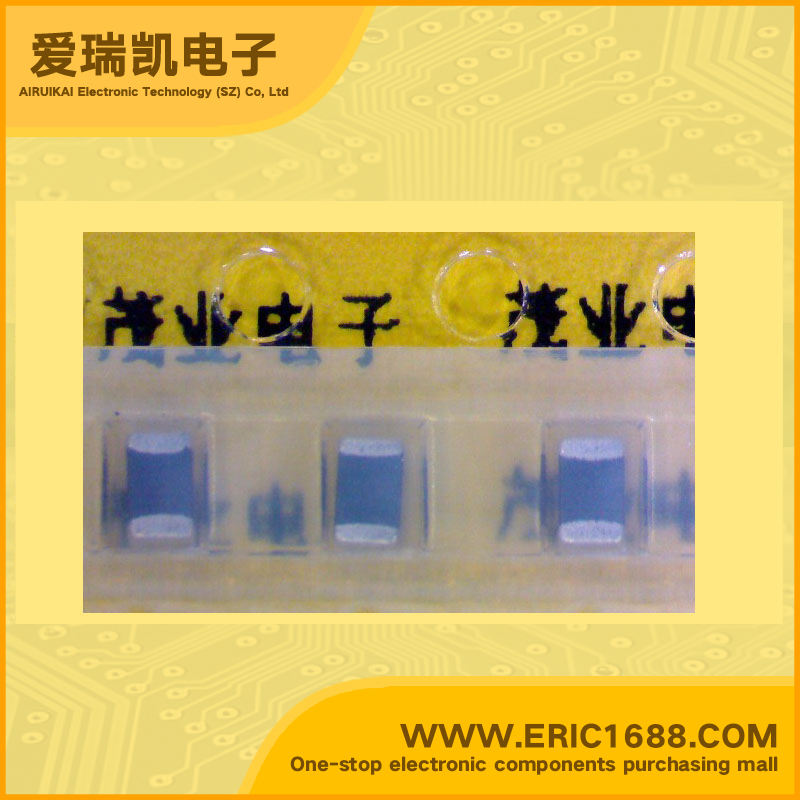

磁珠 ACB2012M-080-TL 0805-8r
| 不同频率时的阻抗Impedance @ Frequency | 80Ω@100MHz |
| 额定电流Current Rating | 400mA |
| DC电阻DCRDC Resistance | 400mΩ |
| Description & Applications | FEATURES • The ACB series provide effective EMC suppression in signal lines through simple in-series implementation. It is thus ideal for circuits in which it is difficult to bypass high-frequency components to ground. • Reflection components are highly suppressed through the use of a special ferrite material and an advanced internal structure that minimizes stray capacitance. This product is, therefore, an excellent countermeasure for noise radiation in high-speed digital signal lines. |
| 描述与应用 | 特点 •ACB系列提供了有效的EMC抑制信号线 通过简单的在产品系列的应用。因此，它是理想的电路 中，这是很难绕过的高频分量 到地面。 •反射元件通过使用高度抑制 一个特殊的铁氧体材料和先进的内部结构 最大限度地减少杂散电容。因此，本产品是一个很好的 在高速数字信号的噪声辐射对策 线。 |
| 规格书PDF |
