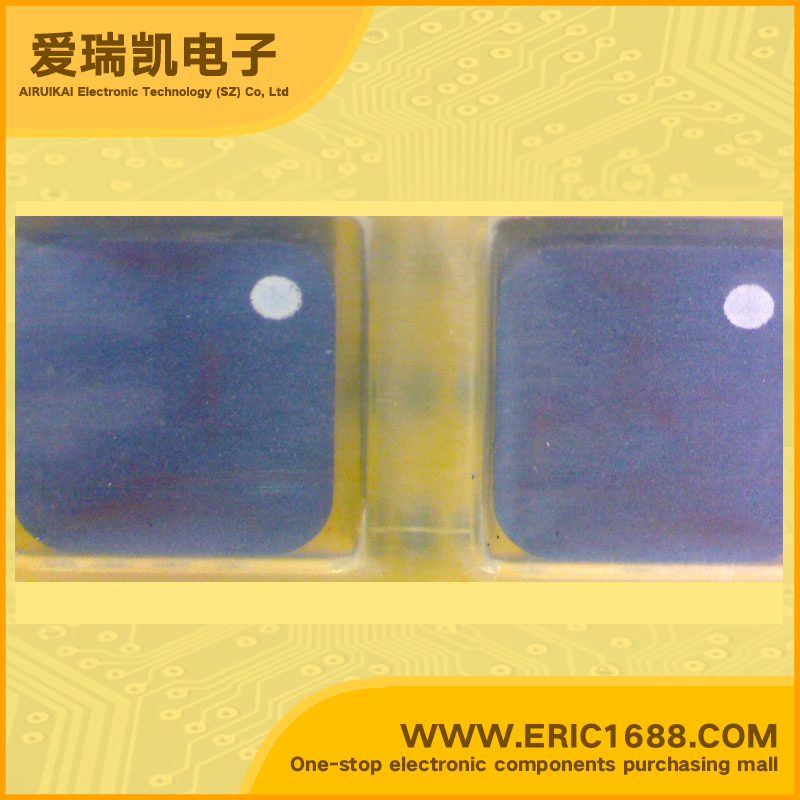

ACM0908-801-2P 共模电感 0908-801
| 线路数Number of Lines | 2 |
| 电感值Inductance | |
| 电流Current | 5000mA |
| 电阻DCRDC Resistance (DCR) | 6R |
| 阻抗Impedance | 800R |
| Description & Applications | FEATURES • A chip-type common mode filter for high current applications. Common mode impedance surpasses 600 to 1000Ω at 100MHz. Noise is greatly suppressed. • Capable of handling the highest current (up to 6A) of any chiptype common mode filter. • This series of choke coils handles a range of current settings from 1 to 6A. • Height and size have been considered, resulting in a compact and light-weight choke coil. Applicable for the miniaturization required to reduce the size and weight of portable equipment. APPLICATIONS Used for power line noise suppression for any electronic devices. Used to counter adapter/battery line noise for relatively large electronic devices |
| 描述与应用 | 特点 •用芯片型共模滤波器，高电流的应用。 共模阻抗超过600〜1000Ω在100MHz。 噪音被大大抑制。 •能够处理的最高电流高达6A的任何芯片类型的共模滤波器。 •这一系列的扼流线圈处理当前的设置范围 从1到6A。 •高度和大小已被考虑，从而实现紧凑 ，重量轻的扼流线圈。适用于小型化的 降低便携式设备的尺寸和重量的需要。 应用 使用任何电子设备的电源线噪声抑制。 用来对付比较大的电子设备的适配器/电池线噪声 |
| 规格书PDF |
