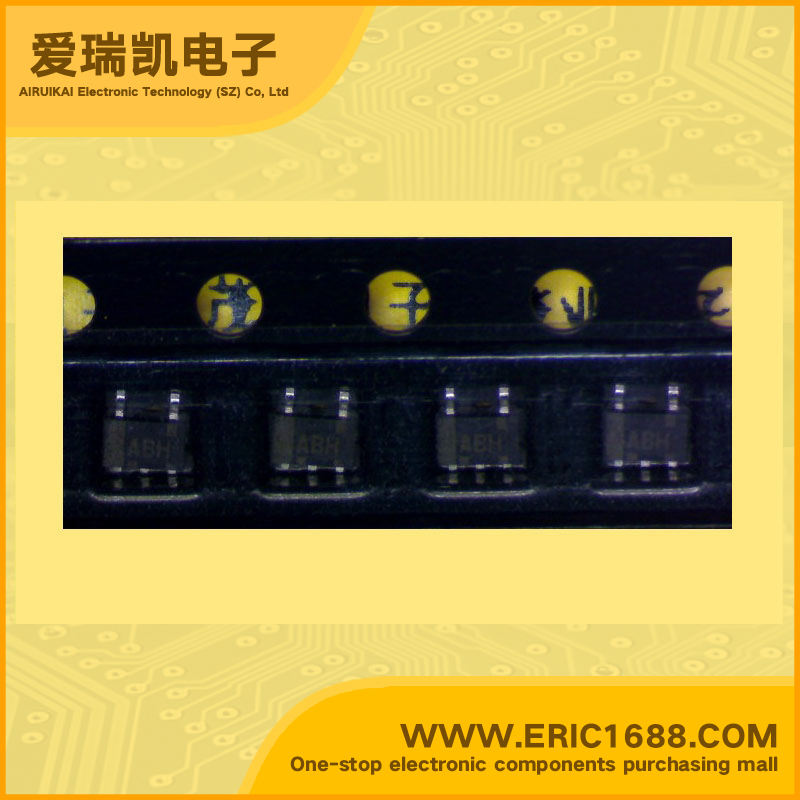

集成电路IC 或非门 AHC1G02HDCKR SOT-353/SC70-5/SC-88A marking/标记 ABH
| 逻辑类型Logic Type | 或非门 NOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -8mA，8mA |
| 低逻辑电平Logic Level - Low | 0.3V~1.1V |
| 高逻辑电平Logic Level - High | 1.7V~4.4V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 3.9ns @ 3.0V，15pF |
| Description & Applications | single 2-input positive-nor gate;Features Operating range 2V to 5.5V Vcc Switching speed typ 3.9ns(@Vcc=3.0V,CL=15pF) All inputs Vih(max)=5.5V(@Vcc=0 to 5.5V) 5 pin DBV package 5 pin DCK package |
| 描述与应用 | 单2输入正或非门;特性 工作范围2V至5.5V的VCC 典型开关速度3.9ns（VCC= 3.0V，CL=15PF） 所有输入VIH（最大）= 5.5V（VCC =0〜5.5V） 5引脚DBV封装 5引脚DCK封装 |
| 规格书PDF |
