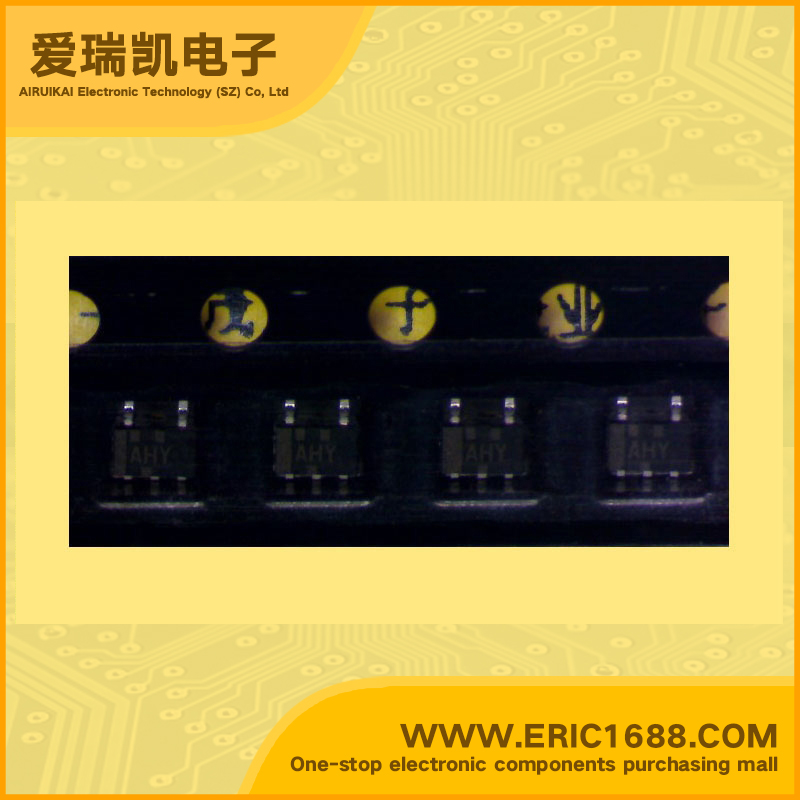

集成电路IC 异或门 AHC1G86DCKR SOT-353/SC70-5/SC-88A marking/标记 AHY
| 逻辑类型Logic Type | 异或门 XOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -8mA，8mA |
| 低逻辑电平Logic Level - Low | 0.5V~1.65V |
| 高逻辑电平Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 8.8ns @ 5V，50pF |
| Description & Applications | single 2-input exclusive-or gate;Features Operating Range of 2 V to 5.5 V Max tpd of 8 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time |
| 描述与应用 | 单双输入异或门;特性 2 V至5.5 V的工作范围 最大为8 ns在5 V吨 低功耗，10μA最大ICC ±8 mA输出驱动在5 V 施密特触发器动作在所有输入使 电路容错输入较慢的上升和下降时间 |
| 规格书PDF |
