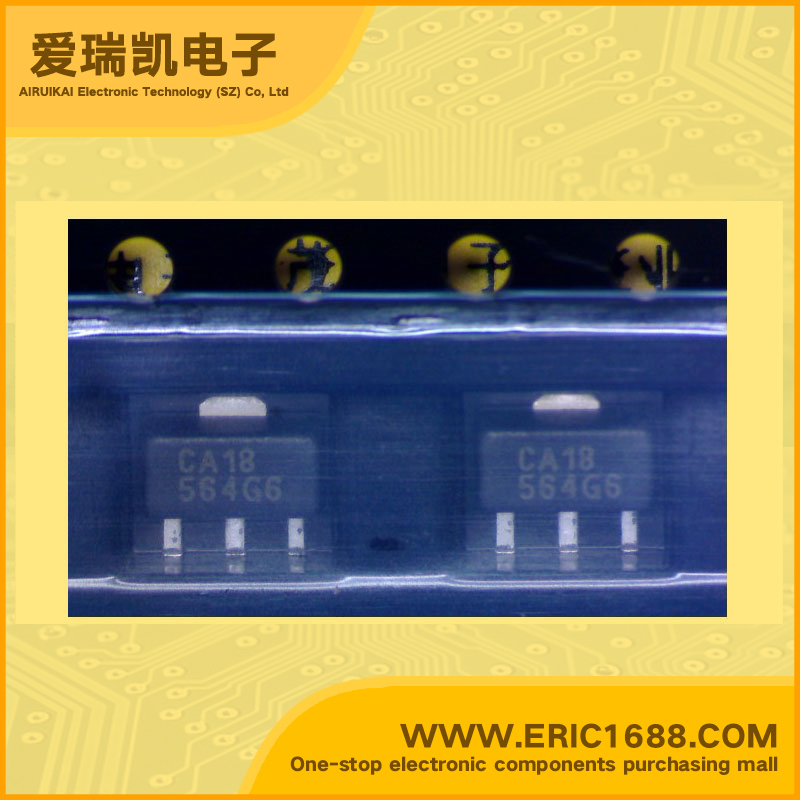

AIC1734-18CXA LDO电压调整器/稳压电源IC 1.8V 1.26V SOT-89 marking/标记 CA18 短路保护 过热保护

热销商品

产品描述
电路数量Number of Regulators1
输入电压VINVoltage - Input -0.3~12V
输出电压VOUTVoltage - Output1.8V
输出电流IoCurrent - Output300mA/0.3A
最大压降VDOVoltage - Dropout1.26V
带使能脚EN/CE(ON/OFF功能)With Enable Pin无 No
最大耗散功率PdPower dissipation
Description & Applications300mA Low Dropout Linear Regulator ;•Low Dropout Voltage of 470mV at 300mA Output Current (3.0V Output Version). •Guaranteed 300mA Output Current. •Low Ground Current at 55µA. •Only needs 1µF Output Capacitor for Stability. •Current and Thermal Limiting. •CD-ROM Drivers. • LAN Cards. •Microprocessor. •RAM Module. •Wireless Communication Systems. •Battery Powered Systems.
描述与应用300mA的低压差线性稳压器;•低压差电压470mV在300mA输出电流(3.0V输出版本)。 •保证300mA输出电流。 •低接地电流55μA。 •只需要1μF的输出电容器的稳定性。 •电流和热限制。 •CD-ROM驱动器。 •LAN贺卡。 •微处理器。 •RAM的模块。 •无线通信系统。 •电池供电系统。
规格书PDF
