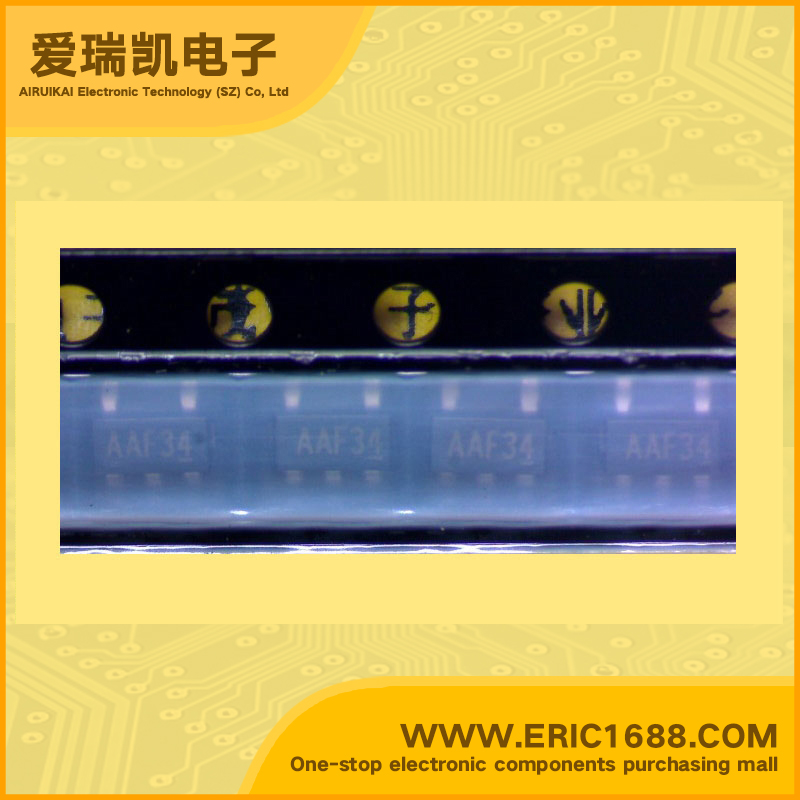

AME8801AEEV LDO电压调整器/稳压电源IC 3.3V 300mV/0.3V 带使能脚EN/CE SOT-153/SOT23-5 marking/标记 AAF 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 8V |
| 输出电压VOUTVoltage - Output | 3.3V |
| 输出电流IoCurrent - Output | 300mA/0.3A |
| 最大压降VDOVoltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | 300mA CMOS LDO ;•Very Low Dropout Voltage •Guaranteed 300mA Output •Accurate to within 1.5% •30µA Quiescent Current •Over-Temperature Shutdown •Current Limiting •Short Circuit Current Fold-back •Noise Reduction Bypass Capacitor •Power-Saving Shutdown Mode • Space-Saving SOT-25 (SOT-23-5) Package • Factory Pre-set Output Voltages •Low Temperature Coefficient •Instrumentation •Portable Electronics •Wireless Devices •Cordless Phones • PC Peripherals • Battery Powered Widgets •Electronic Scales |
| 描述与应用 | 300mA的CMOS LDO;•非常低压差电压 •保证300mA输出 •精确度在1.5％以内 •30μA静态电流 •过温关断 •电流限制 •短路电流折返 •降噪绕道电容 •省电关断模式 •节省空间的SOT-25封装（SOT-23-5）包装 •工厂Pre-set输出电压 •低温度系数 •仪表 •便携式电子产品 •无线设备 •无绳电话 •PC外设 •电池供电的小工具 •电子秤 |
| 规格书PDF |
