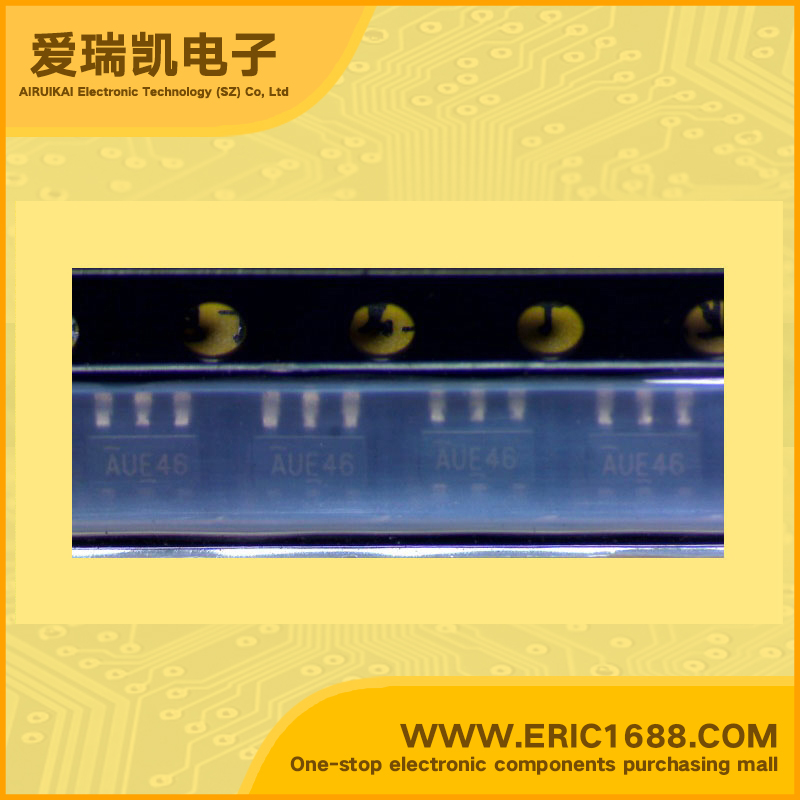

AME8824AEEY LDO电压调整器/稳压电源IC 可调/adj 300mV/400mV/1300mV SOT-163/SOT-26/SOT23-6 marking/标记 AUE 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 8V |
| 输出电压VOUTVoltage - Output | 可调/adj |
| 输出电流IoCurrent - Output | 300mA/0.3A |
| 最大压降VDOVoltage - Dropout | 300mV/400mV/1300mV |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | 300mA CMOS LDO ;•Very Low Dropout Voltage •Guaranteed 300mA Output •Typical accuracy within 2% •30mA Quiescent Current •Over-Temperature Shutdown •Current Limiting •Short Circuit Current Fold-back •Power Good Detector (6 pin version only) •Power-Saving Shutdown Mode •Space-Saving SOT-26 •Adjustable Output Voltages •Low Temperature Coefficient |
| 描述与应用 | 300mA的CMOS LDO;•非常低压差电压 •保证300mA输出 •典型精度在2％以内 •静态电流30mA •过温关断 •电流限制 •短路电流折返 •电源良好探测器（6针版本） •省电关断模式 •节省空间的SOT-26 •可调输出电压 •低温度系数 |
