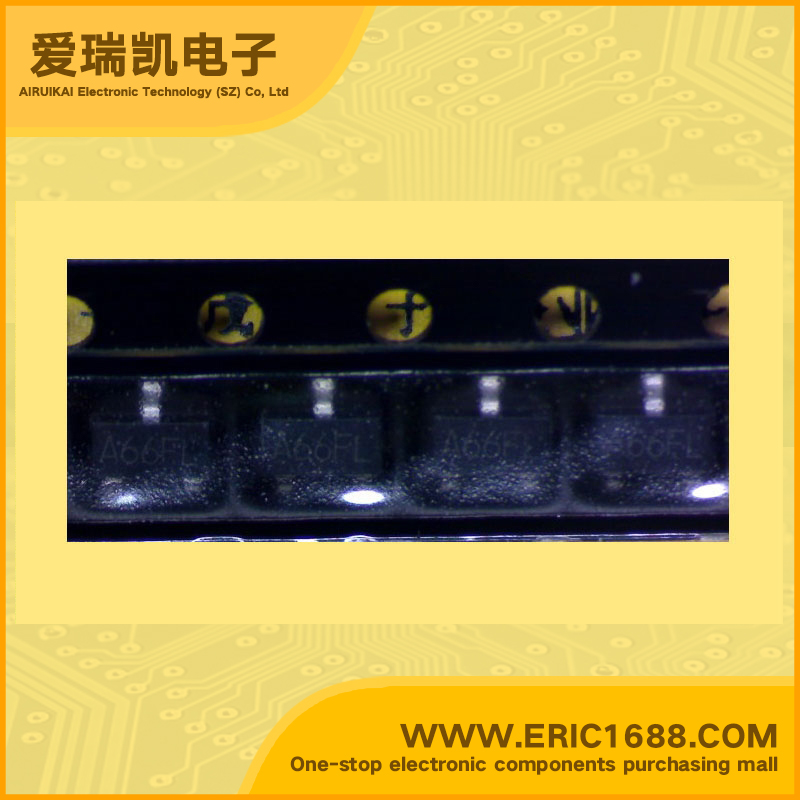

AP431WL 电压基准电源IC 2.495V~36V SOT-23 marking/标记 A66 可调式精密并联稳压器
| 参考类型Reference Type | |
| 输出电压VoVoltage - Output | 2.495V~36V |
| 误差Tolerance | ±1% |
| 温度系数Temperature Coefficient | 30ppm/°C |
| 输入电压Voltage - Input | 2.495V~36V |
| 阴极电流Current - Cathode | 300uA |
| 输出电流IOUTCurrent - Output | 200mA/0.2A |
| Description & Applications | FEATURES • ADJUSTABLE PRECISION SHUNT REGULATOR • Precision reference voltage • AP431: 2.495V ± 1% • AP431A: 2.495V ± 0.5% • Sink current capability: 200mA • Minimum cathode current for regulation: 300μA • Equivalent full-range temp coefficient: 30 ppm/°C • Fast turn-on response • Low dynamic output impedance: 0.2Ω • Programmable output voltage to 36V • Low output noise • Lead Free packages: SOT25, SC59, SC59R, SOT89-3L and TO92-3L • SOT23, SOT23R, SOT25, SC59, SC59R, SO-8, SOT89-3L, TO92-3L: Available in “Green” Molding Compound (No Br, Sb) • Lead Free Finish/ RoHS Compliant (Note 1) |
| 描述与应用 | 特点 •可调式精密并联稳压器 •精密参考电压 •AP431：2.495V±1％ •AP431A：2.495V±0.5％ •灌电流能力时：200mA •最小阴极电流调节：300μA •等效满量程温度系数：30 PPM/°C •快速导通响应 •低动态输出阻抗：0.2Ω •可编程输出电压为36V •低输出噪声 •无铅封装：SOT25，SC59，SC59R，SOT89-3L和TO92-3L SOT23封装，SOT23R，SOT25，SC59，SC59R，SO-8，SOT89-3L，TO92-3L：“绿色”模塑化合物（无溴，锑） •铅涂层/符合RoHS标准（注1） |
| 规格书PDF |
